PROFIBUS cable with double outer sheath for outdoor/direct burial use
Bus cable for PROFIBUS-DP, -FMS and FIP. Rugged, UV- and weather-resistant. Temperature range from -40°C bis +60°C.
Benefits
-
Fast Connect (FC) cable design
-
Rugged, UV-resistant and weatherproof
-
Cables can be used for PROFIBUS-DP as well as PROFIBUS-FMS and FIP
Application range
-
PROFIBUS DP (in accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC® NET, also suitable for FIP - Factory Instrumentation Protocol).
Product features

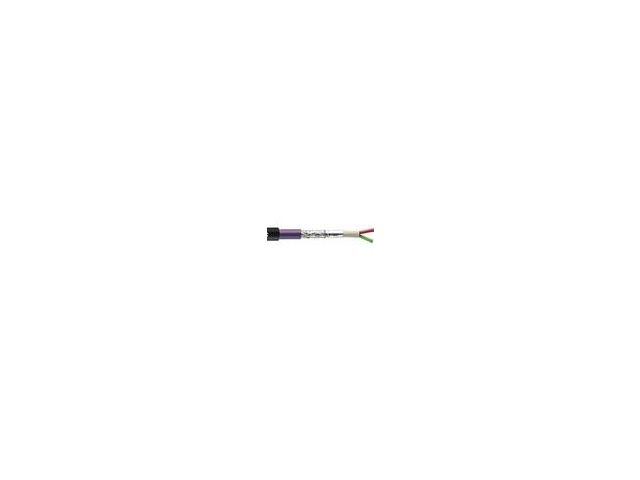

Product Make-up
-
Solid and bare copper conductor
-
Core insulation: foam skin, (O2YS)
-
Overall screening with copper braid and plastic-laminated aluminium foil
-
Inner sheath: PVC, violet RAL (4001),
outer diameter: 8.0 mm
-
Outer sheath, PE, black RAL (9005),
outer diameter: 10.8 mm
