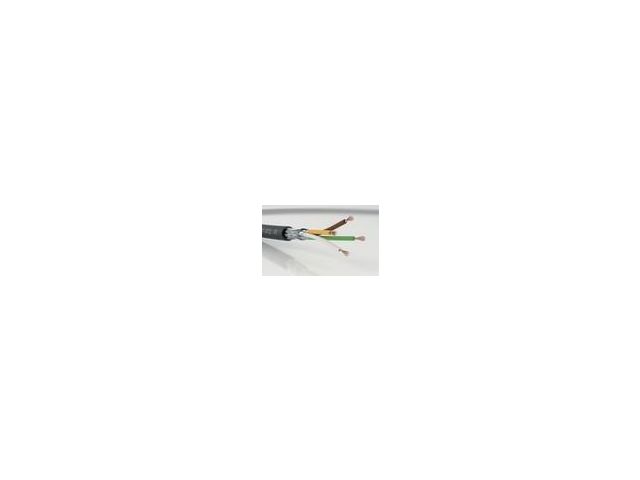

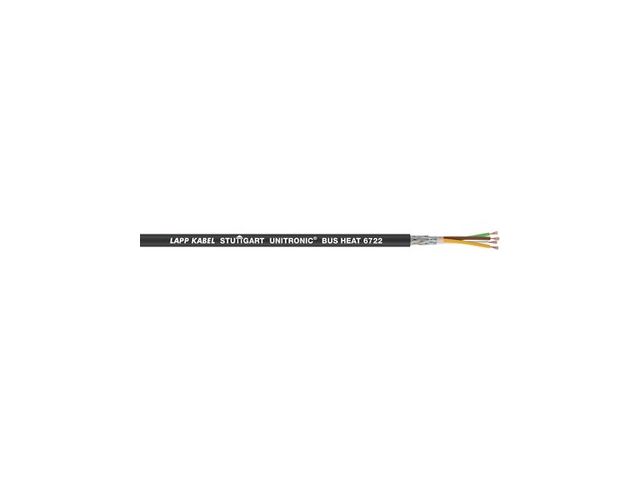

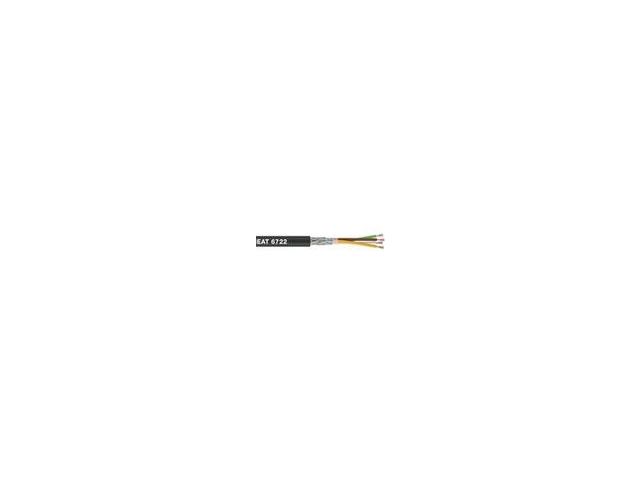

CAN bus cable for utility vehicles | UNITRONIC BUS HEAT 6722 1x4x0,25

Fieldbus

Ask for a quote Receive Documentation Contact the supplier

CAN bus cable for use in utility vehicles with extended requirements, like higher temperature range, restistance against UV, operating fluids etc.

  • Designed according to ISO 6722
  • tested acc.to ECE-R 118.01
Benefits
  • Star-quad stranding, thus less space requirement and weight
  • Extended temperature range
  • Good resistance to oil, petrol, acids and alkalis
Application range
  • Suitable for connecting to of e.g. camera systems, enter-/ infotainment for passengers, ticketing systems
  • For fixed, occassionally flexible and protected use inside of utility vehicles
Product features
  • Halogen-free outer sheath
  • Maximum bit rate: 1 Mbit/s for 40 m
    segment length
  • temperature class B on the basis of ISO 6722-1
  • ISO 11898 makes recommendations for the segment length, cable cross section and bit rate
  • Flame-retardant according IEC 60332-1-2
Norm references / Approvals
  • Standardised internationally in ISO 11898
Product Make-up
  • Stranded bare conductor
  • PUR outer sheath
  • Colour: black
  • UV-resistant (but colour may change after some time)
  • Screening: wrapped with braided copper wires
