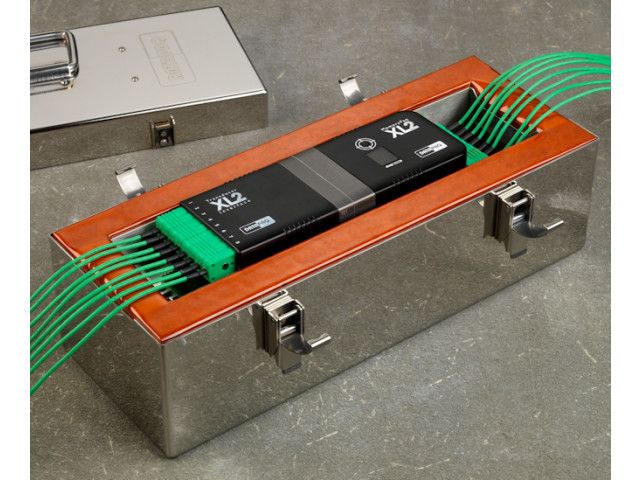

DATAPAQ Oven Tracker XL2 Temp. Profiler|Paint+Cure

Temperature recorder

Ask for a quote Receive Documentation Contact the supplier

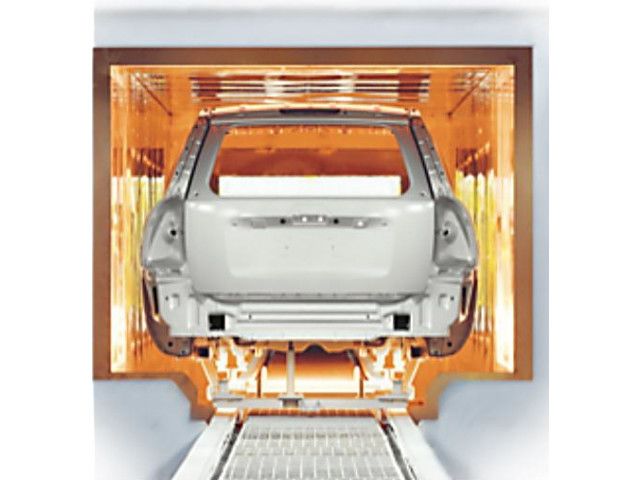

The automotive industry standard in thermal profiling of paint cure processes
Silicone-free technology
Multiple oven tests possible before returning to PC
Process Pass/Fail at oven exit
Up to 16 measurement locations in a single run
Hard wired real-time data analysis from batch ovens

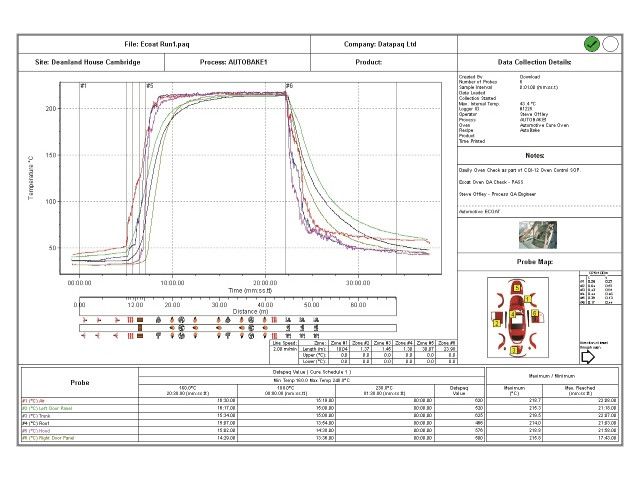

Fully customizable and easy-to-use Insight analysis software
Wide range of thermal barriers & thermocouples to suit your process needs

Temperature range: -200ºC to 1370ºC (-328ºF to 2498ºF) Accuracy: ±0.3ºC (±0.5ºF) Resolution: 0.1ºC (0.2ºF) Sample interval: 0.5 s to 50 min Memory: 4MB (capable of 10 runs; total run time for 8 channels at 5s sample interval=17.5 hrs) Cold junction compensation: Yes Channels: Up to 16 Multi-run capability: Up to 10 Data collection: Plug & Go; temperature trigger Battery: NiMH rechargeable
Download the complete technical features

OTHER PRODUCTS TEMPERATURE RECORDER FROM Fluke Process Instruments GmbH

DATAPAQ ET3 Temp. Data Logger for Powder Coating

DATAPAQ ET3 Temp. Data Logger for Powder Coating

 Ask for a quote
Datapaq FurnaceTracker 12-channel for Metals+Glass

Datapaq FurnaceTracker 12-channel for Metals+Glass

 Ask for a quote
DATAPAQ Reflow Tracker Thermal Barrier Range

DATAPAQ Reflow Tracker Thermal Barrier Range

 Ask for a quote
DATAPAQ XL2 Temperature Data Logger|Coating+ Paint

DATAPAQ XL2 Temperature Data Logger|Coating+ Paint

 Ask for a quote
DATAPAQ AutoPaq Paint Temperature Profiling Kit

DATAPAQ AutoPaq Paint Temperature Profiling Kit

 Ask for a quote
DATAPAQ EasyTrack3 Thermal Profiler Powder Coating

DATAPAQ EasyTrack3 Thermal Profiler Powder Coating

 Ask for a quote

Check out all the products from temperature recorder from FLUKE PROCESS INSTRUMENTS GMBH

INTERNET USERS ALSO CONSULTED ON THE CATEGORY TEMPERATURE RECORDER

Wireless temperature sensor LoRa SPY U

Wireless temperature sensor LoRa SPY U

 Ask for a quote
LoRa®-Powered Temperature and Humidity Data Loggers: KT - TrackLog

LoRa®-Powered Temperature and Humidity Data Loggers: KT - TrackLog

 Ask for a quote
Bluetooth Low Temperature Data Logger POD PROBE

Bluetooth Low Temperature Data Logger POD PROBE

 Ask for a quote
Bluetooth temperature and humidity data logger POD RH

Bluetooth temperature and humidity data logger POD RH

 Ask for a quote
BTU meter | EngyCal RH33

BTU meter | EngyCal RH33

Ask for a quote

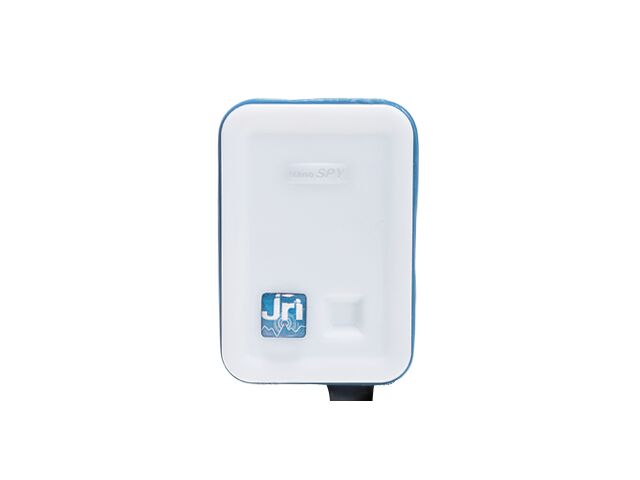

Mini temperature data logger Nano SPY Digital
