Mini data logger Nano SPY U for analog sensor

Temperature recorder

“ Easy to use : the Nano SPY U is ready to use and has operating and alarm lights Replaceable battery and non disconnectable probe Non-debrochable connector for analog senso ”

Ask for a quote

Presentation

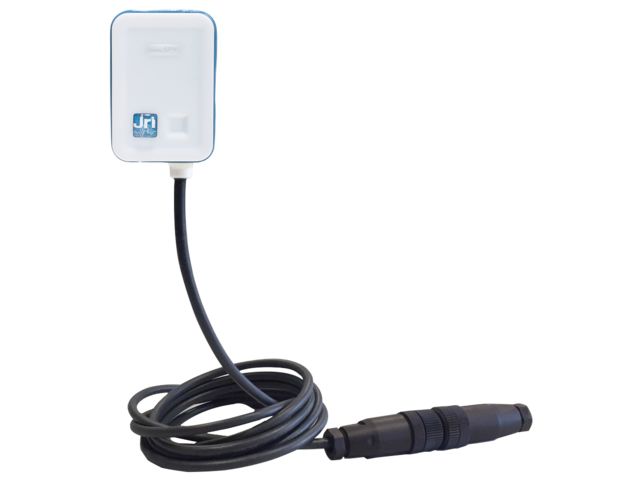

The Nano SPY U mini recorder is designed to measure and record data coming from the following types of analog sensors: PT100, current (4-20 mA / 0-20mA), voltage (0-1V), counting or dry contact.

It is equipped with a 4-wires cable facilitating connection to terminal blocks of sensors with analog outputs. These sensors can, if necessary, be disconnected from the logger for replacement or for the exchange of the logger itself.
An IP67 Binder connector (optional) can be used to facilitate the connection of the sensors.

The Nano SPY U transmits data to a nearby Nano SPY LINK transmission module, by 2.4 GHz radiofrequency communication.
The measurements are then sent automatically to the JRI secure Cloud for hosting, and will be managed on JRI MySirius monitoring platform.

If thresholds are exceeded, alerts are transmitted in real time to react immediately.

Technical features

Measurement range -200°C to +300°C Resolution 0,01°C Accuracy Without probe ±0,2°C from -20°C to +50°C ±0,3°C from -80°C to -20°C and from +50°C to +140°C ±0,5°C out of this range

Download the complete technical features
