DATAPAQ MultiPaq21 Temp.Data Logger |Food Industry

Temperature recorder

The DATAPAQ MultiPaq21 data logger has up to eight channels (Type T or K), allowing you to collect product and environmental temperatures from up to eight locations at once. Using flexible...

Ask for a quote

Presentation

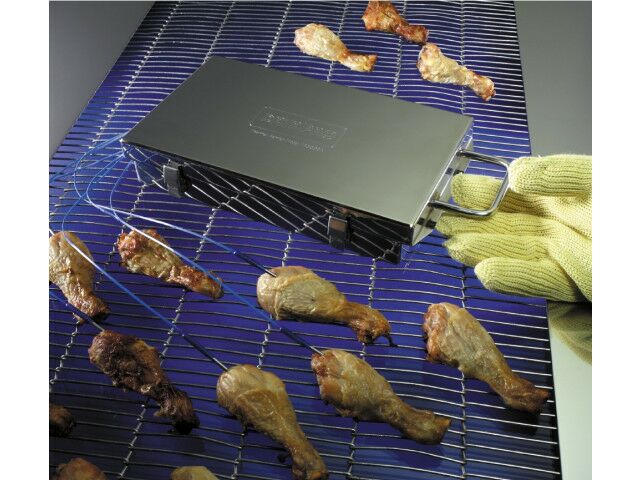

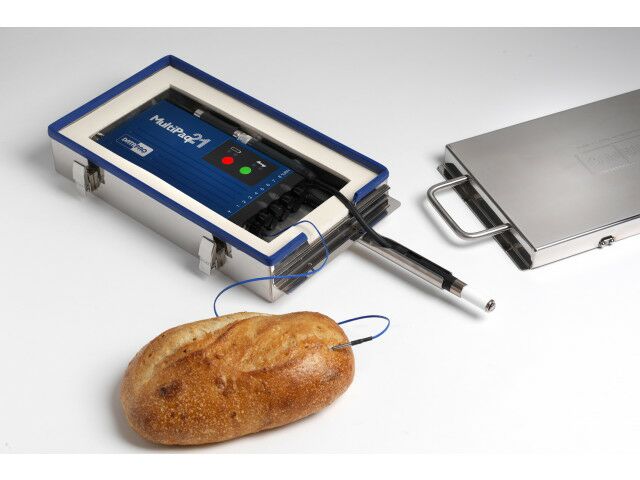

The DATAPAQ MultiPaq21 data logger has up to eight channels (Type T or K), allowing you to collect product and environmental temperatures from up to eight locations at once. Using flexible thermocouple cables, the temperature sensors can be positioned precisely within the product, on the surface or in the air. They can record temperatures without the data logger or its mass influencing the response characteristics of the sensors and thus, the accuracy of the readings.

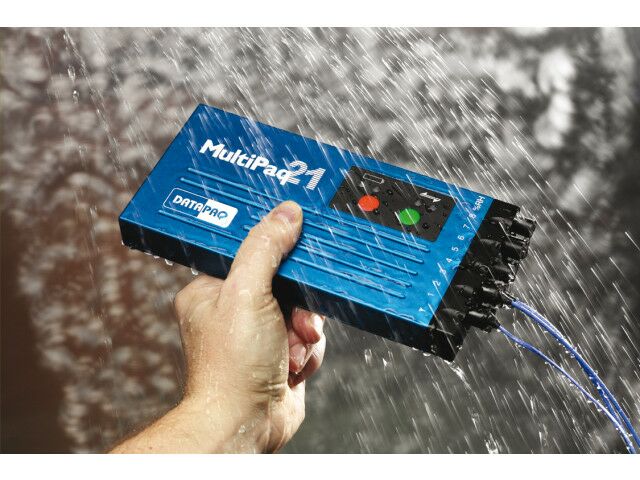

The data logger is designed to withstand the most hostile of food processing applications and is rated to IP67 with special waterproof thermocouple connections protecting against steam, water showers and routine cleaning procedures. The logger will store up to eight profiles before it needs to be downloaded.

DATAPAQ temperature profiling systems comprise high-accuracy industrial-strength data loggers, thermocouples, thermal barriers, and analysis software.

Technical features

Temperature Range: -196ºC to 1370ºC (-238ºF to 2498ºF) Sampling Interval: 0.05 seconds to 10 minutes Accuracy: ±0.2ºC (±0.4ºF) Resolution: 0.1ºC (0.2ºF) Memory: 1.81MB (e.g. 16 hrs, 8 channels, 0.5 second sampling) Data collection start: Start/Stop buttons, time or temperature trigger Thermocouple types: T or K Battery: NiMH rechargeable Radio telemetry: Optional Humidity sensor interface: With 8-channel system
