DATAPAQ TP3 20-Channel Temperature Data Logger

DATAPAQ TP3 20-Channel Temperature Data Logger - Fluke Process Instruments GmbH

DATAPAQ TP3 20-Channel Temperature Data Logger - Temperature recorder

DATAPAQ TP3 20-Channel Temperature Data Logger - produit présenté par Fluke Process Instruments GmbH

DATAPAQ TP3 20-Channel Temperature Data Logger

Temperature recorder

Ask for a quote

Presentation

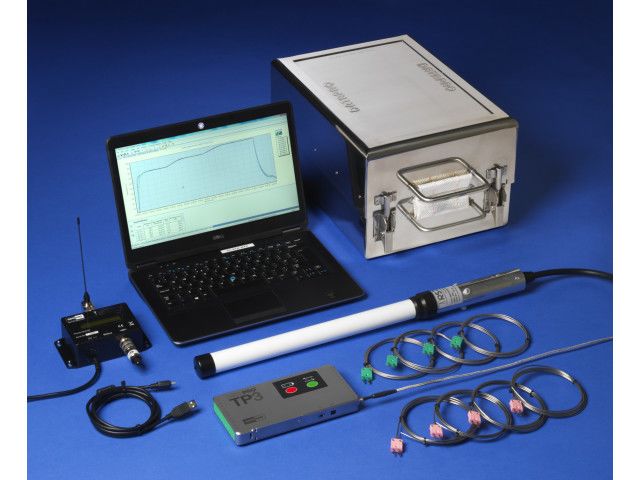

DATAPAQ temperature profiling systems comprise data loggers, thermocouples, thermal barriers, and analysis software.
The DATAPAQ TP3 logger is used with DATAPAQ Furnace Tracker, DATAPAQ Kiln Tracker, and DATAPAQ Oven Tracker systems.
Features:
10 or 20 thermocouple channels
Reset/download via Bluetooth with short range telemetry capability (up to 5 meters)
High accuracy: ±0.3 °C (±0.5 °F)
Onboard memory service log for remote diagnostic and rapid on-site service
Standard USB data cable available in local markets
Radio frequency (RF) telemetry or hardwired data acquisition for monitoring in real time

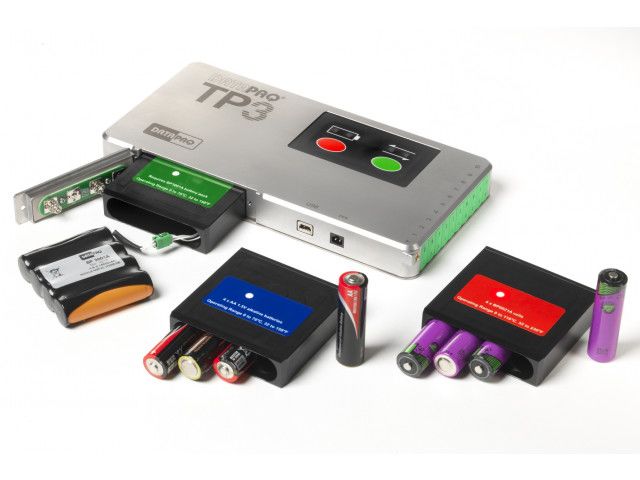

Three user-replaceable battery types for operation in normal and high ambient temperatures
‘Multiple events’ allows variable sampling intervals during a run – ideal for water and gas quench processes
Multiple run capability allows storing up to 10 runs before downloading into separate .paq files
Sampling intervals down to 0.1 seconds to collect maximum data

Technical features

Temperature range: -100°C to 1370°C (-148°F to 2498°F) Connectivity: USB or Bluetooth as standard Number of channels: 10 or 20 channels (depending on model) Memory capacity: Up to 3.6 million datatpoints Sampling interval: 0.1 sec – 50 min Maximum operating temperature: Up to 110°C – depending on model Logger accuracy: ± 0,3°C (0.5°F) Dimensions LxWxH: 200 × 98 × 20 mm (7.9 × 3.9 × 0.8 in) Battery: Lithium, NiMH rechargeable, Alkaline x 4AA Thermocouple type: Standard: K (other types available, combination of different types possible)
