DATAPAQ Reflow Tracker Thermal Barrier Range

Temperature recorder

Ask for a quote

Presentation

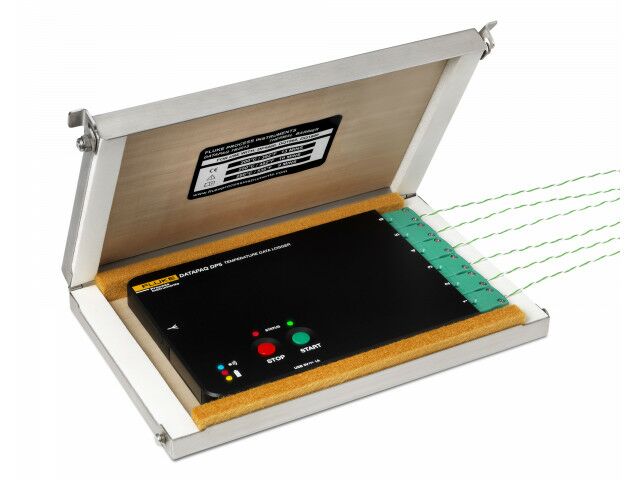

Compact, light thermal barriers protect temperature data loggers in reflow ovens with tight space restrictions. Their stainless-steel casings and microporous ceramic insulation ensure maximum protection and service life. The most popular model weighs only 0.7 kg (1.6 lb) and can survive temperatures of 300 °C (572 °F) for over eight minutes.

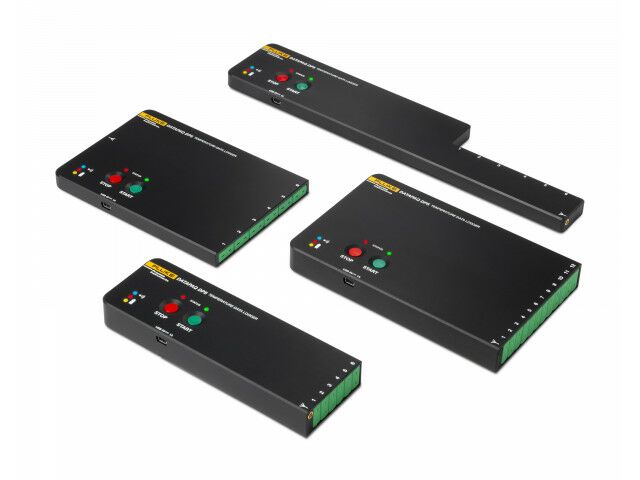

Barriers for 6-channel data logger DP5660
- TB2015 standard
- TB2064 low-height
- TB2065 for long-duration or rapid re-use

Barriers for narrow 6-channel data logger DP5662
- TB2020 low-height narrow
- TB2021 narrow

Barriers for super-slim 6-channel data logger DP5661
- TB2066 low-height slim
- TB2067 standard slim
- TB2068 slim, for long-duration or rapid re-use

Barriers for 12-channel data loggerDP5612
- TB2100 low-height
- TB2121 standard

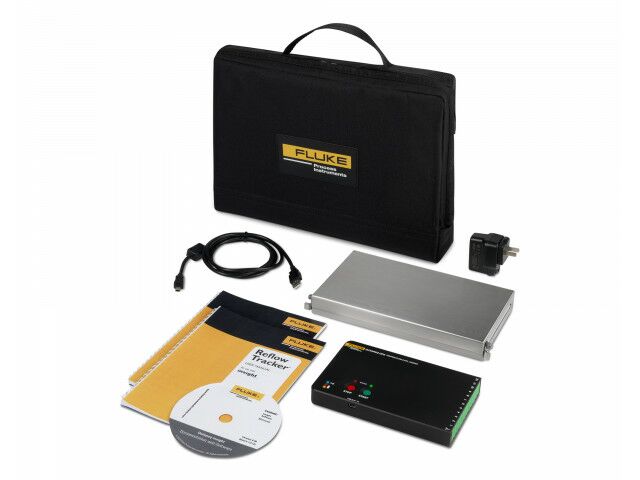

The DATAPAQ Reflow Tracker program provides in-process temperature monitoring solutions for reflow soldering processes. It includes a data loggers, analysis software, and thermocouples.

Technical features

Max. thermal duration: 10 min at 280 °C / 536 °F, 13 min at 200 °C / 392 °F (TB2065, TB2021, TB2068, TB2121) Barrier size for 6-channel DP5660: from 20 × 133 × 210 mm (0.8 × 5.2 × 8.3 in; H x W x L) Barrier size for 6-channel DP5662: from 28 × 84 × 223 mm (1.1 × 3.3 × 8.8 in; H x W x L) Barrier size for 6-channel DP5661: from 20 × 87 × 328 mm (0.8 × 3.4 × 12.9 in; H x W x L) Barrier size for 12-channel DP5612: from 28 × 134 × 225 mm (1.1 × 5.3 × 8.9 in; H x W x L)
