For CAN based communication systems like CANopen, flame retardant acc. IEC 60332-1-2, temperature range from -40°C up to +80°C.
Application range
Product features
-
Maximum bit rate: 1 Mbit/s for 40 m
segment length
-
Larger conductor cross-section is necessary with increasing length. Refer to the table below (reference values from ISO 11898).
-
ISO 11898 makes recommendations for the segment length, cable cross section and bit rate
-
Flame-retardant according IEC 60332-1-2
Norm references / Approvals
-
Standardised internationally in ISO 11898
-
UL/CSA type CMX (UL 444)

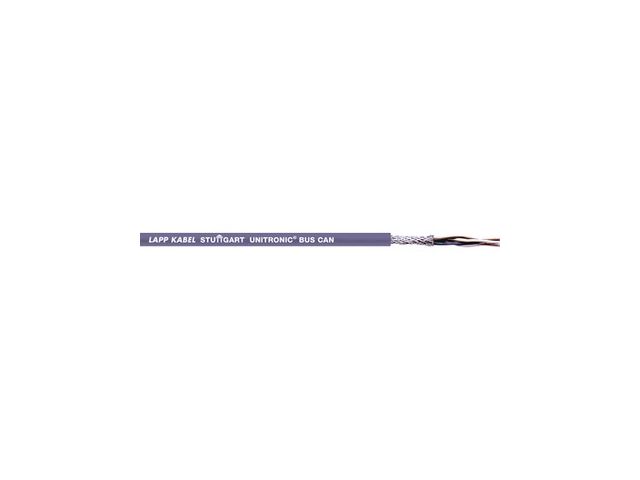

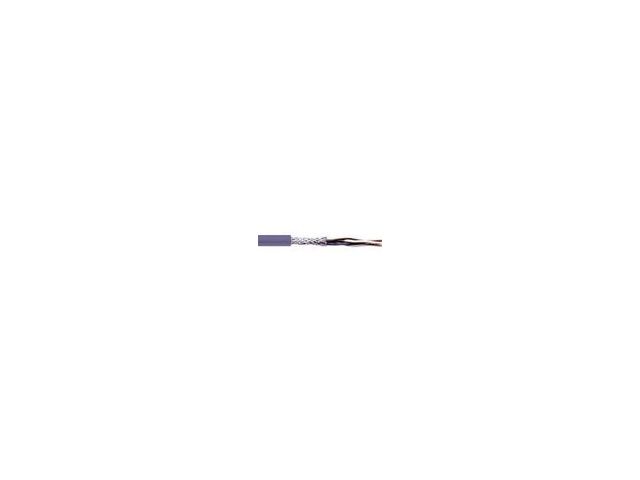

Product Make-up
-
0.22 + 0.34 + 0.5: bare stranded conductor, 7-wire
0.75: bare stranded conductor, fine-wire
-
Core insulation: foam skin
-
Colour-coded in accordance with DIN 47100
-
Copper braid
-

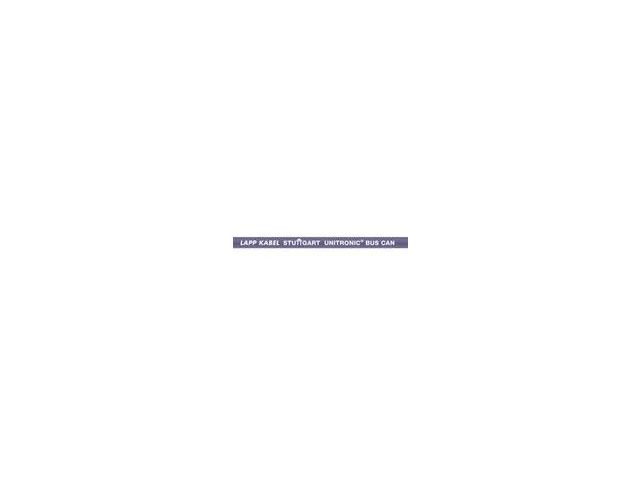

Outer sheath: PVC, violet (RAL 4001)
