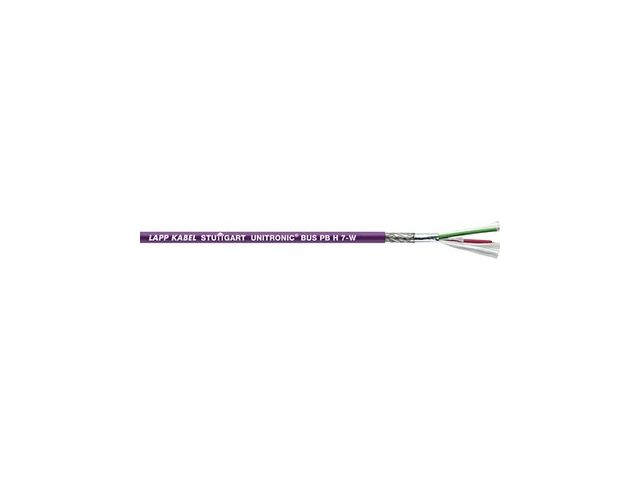

PROFIBUS cables for fixed applications | UNITRONIC BUS PB H 7-W 1X2X0,64

Fieldbus

Ask for a quote Receive Documentation Contact the supplier

Variours bus cable for PROFIBUS-DP, -FMS and FIP. E.g. Fast Connect and halogen free available.

  • Lapp Kabel is a member of the PROFIBUS User Organisation (PNO)
  • A for Advanced
    here: UL and CSA certifications
Application range
  • For fixed installation
    Maximum electromagnetic screening
  • Dry or damp rooms
  • Item nos. 2170233, 2170333, 2170820, 2170824, 2170826 are all UV-resistant
Product features
  • These bus cables can be used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP
  • Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
    (cable type A, PROFIBUS-DP):
    93.75 kbit/s = 1200 m
    187.5 kbit/s = 1000 m
    500 kbit/s = 400 m
    1.5 Mbit/s = 200 m
    12.0 Mbit/s = 100 m
Norm references / Approvals
  • In accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol)
  • See below for UL certification type
Product Make-up
  • FC: Fast Connect cable design
  • P: Polyurethane
    H: Halogen-free
  • PE: polyethylene outer sheath, black
  • 7-W: 7-wire, e.g. for applications where vibrations occur
  • COMBI: Data transmission and
    power supply in one cable
