Presentation

CC-Link bus cable for high fleible applications - UL-verified

CC-Link to provide efficient, integrated factory and process automation. UV-resistant, flame retardant. AWM style 300V. Temperature range from -40°C bis +80°C

Lapp Kabel is a regular member of the user organisation CC-Link Partner Association (CLPA), Japan.

Benefits

The CC-Link® system was developed by Mitsubishi Electric Automation, Japan.

Application range

CC-Link® (Control & Communication Link) = field bus network, for both control as well as information data to provide efficient, integrated factory and process automation.
For highly flexible applications (power chains, moving machine parts)

Product features

Transmission rate in relation to the distance
156 kbit/s 1.200 m
625 kbit/s 600 m
2,5 Mbit/s 200 m
5,0 Mbit/s 110-150 m
10 Mbit/s 50-100 m
Halogen-free
Flame-retardant according IEC 60332-1-2

Norm references / Approvals

AWM 20233 80 °C 300V

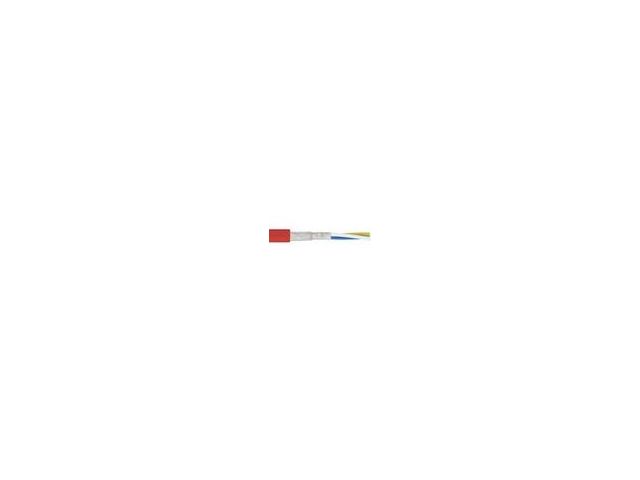

Product Make-up

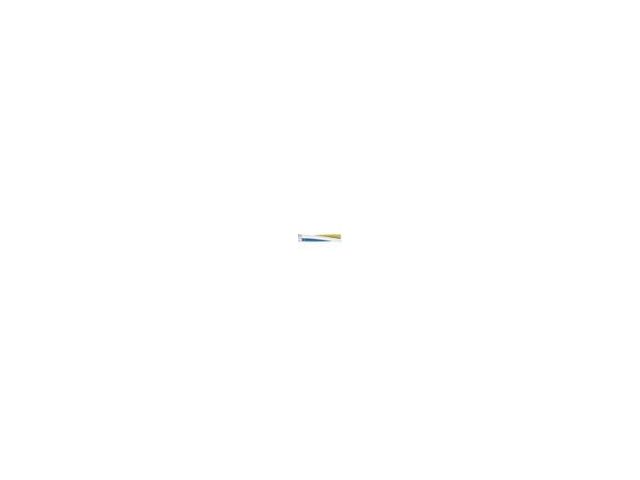

Bare stranded copper wires
Core insulation: PE
Inner sheath: FRNC
Overall screening of braided tinned-copper strands

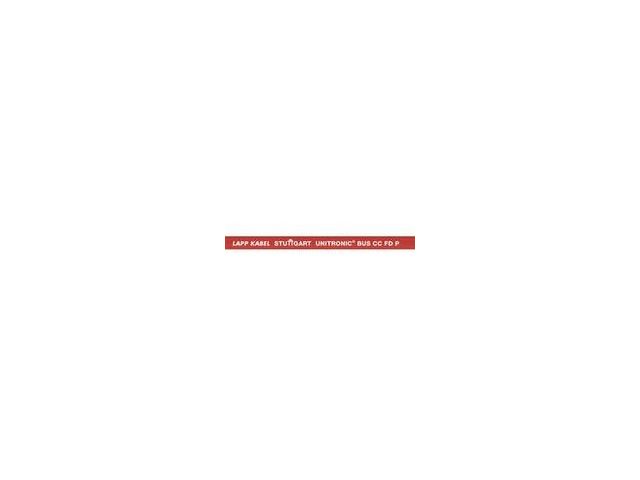

Outer sheath: PUR, red (RAL 3000)
