PROFIBUS cables for fixed applications
Variours bus cable for PROFIBUS-DP, -FMS and FIP. E.g. Fast Connect and halogen free available.
-
Lapp Kabel is a member of the PROFIBUS User Organisation (PNO)
-
A for Advanced
here: UL and CSA certifications
Application range
-
For fixed installation
Maximum electromagnetic screening
-
Dry or damp rooms
-
Item nos. 2170233, 2170333, 2170820, 2170824, 2170826 are all UV-resistant
Product features
-
These bus cables can be used for PROFIBUS-DP as well as for PROFIBUS-FMS and FIP
-
Based on the bit rates listed, in accordance with PNO specifications the following maximum cable lengths for a bus segment apply
(cable type A, PROFIBUS-DP):
93.75 kbit/s = 1200 m
187.5 kbit/s = 1000 m
500 kbit/s = 400 m
1.5 Mbit/s = 200 m
12.0 Mbit/s = 100 m
Norm references / Approvals
-
In accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol)
-
See below for UL certification type
Product Make-up
-

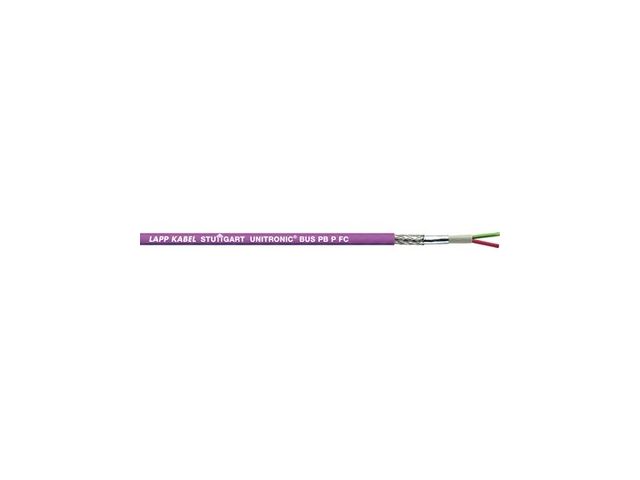

FC: Fast Connect cable design
-
P: Polyurethane
H: Halogen-free
-

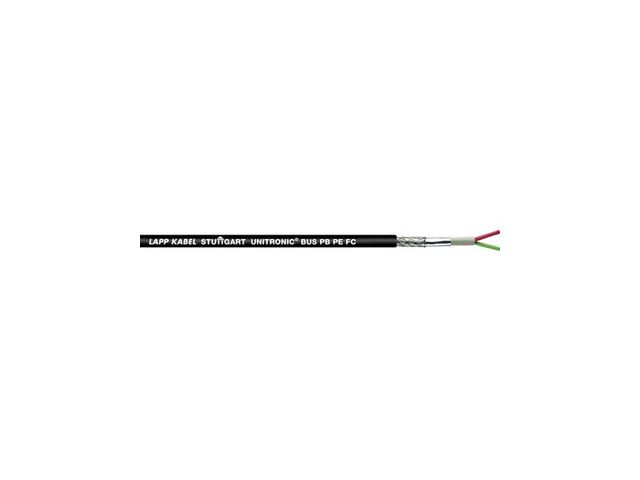

PE: polyethylene outer sheath, black
-

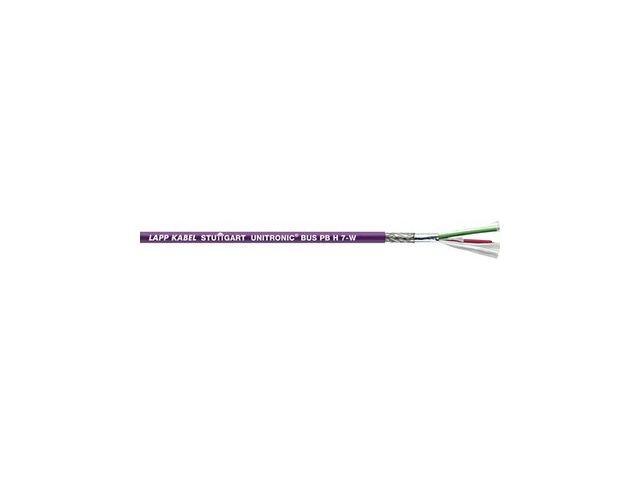

7-W: 7-wire, e.g. for applications where vibrations occur
-
COMBI: Data transmission and
power supply in one cable
