Biko - EDP-C

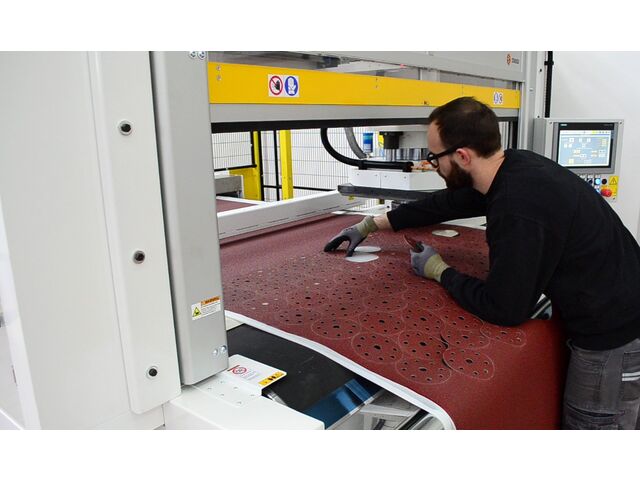

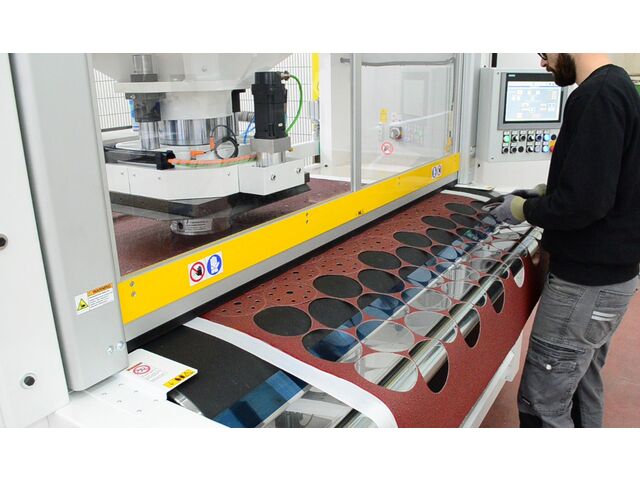

The Die Cutting machine type EDP-C represents, in a compact size, the highest automated system to cut various types of materials into the desired shapes.
Feeding of material is automatic and managed by a transportation conveyor running together with a beam holder.
Machine power permits to cut shapes of various sizes.
From light to heavy materials and of different thicknesses could be processed.
EDP-C has a wide range of configurable cutting forces and cutting head surface.

• Compact size, fully automatic machine
• Operator has immediate access to cutting zone
• Short feeding path, suitable for frequent product change
• Useful material width up to 1,650 mm
• Fully electrical machine, no hydraulic systems involved
• Feeding system by pressing beam working against motorized conveyor
• Punching system mounted on traveling head covering the whole board width
• 25 tons of cutting force (45 and 60 tons available)
• Able to cut more web layers at the same time
• 600 x 600 mm cutting tool mounting board
• Head displacement by servo motor for accurate cutting tool position
• Cutting against dedicated conveyor belt or on counter board. Board oscillates on the X-Y axis
• In case of die with hole punches scrap material is automatically collected and vacuumed from the cutting tool
• A dedicated software manages the whole process and a touch screen allows the operator to change all the settings
• Control software is organized into recipes, easy to recall
• The touch screen gives the possibility to optimize the position of the cutting footprints so as to minimize waste material as much as possible

• Different cutting tonnage
• Cutting head rotating on its axis, for cutting shapes different than discs
• Cutting tools of various shape and size
• Automatic disc stacking system
• Waste winder
• Unwinders

• Overall machine dimensions: 3.3 x 4.3 x 3.0 m
• Approx. weight: 8,300 kg
• Installed power: 17 kW
• Air consumption: 200 Nl/h
