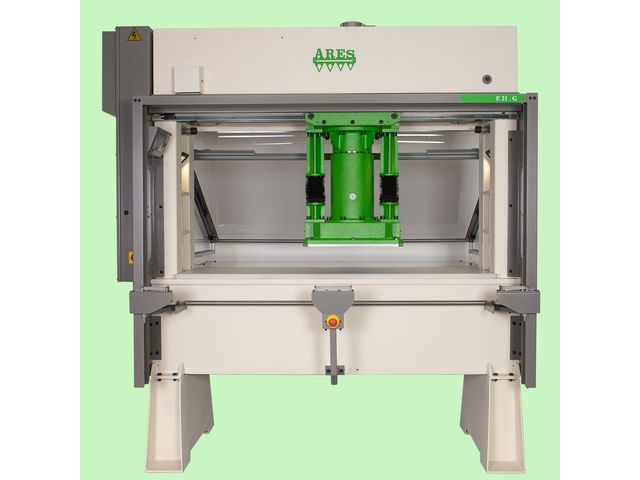

E21G - Green Power

Elettric Travelling Head cutting press 25 -30 Ton

Most technologically advanced model available on the market of its kind

– Fully electric without oil gaskets, pump, motor, flywheel etc

– Reduced periodic maintenance that facilitates after sales assistance, remote control and remote assistance

– Green production system that respects the environment with low co2 emission

-Totally innovative with electric consumption less than 75% lower than a traditional hydraulic die cutter

– Sound emission during the operating phase equal to 0 decibels and limited only in the fraction of a second during the cutting phase

-Versions available with industry 4.0 preparation

Versions:

• E21G – 1 – cutting table : 1700 X 530 MM -Cutting plate 530 X 530 MM- Power : 25 TON
• E21G – 2 – cutting table : 2000 X 530 MM -Cutting plate 530 X 530 MM- Power :25 TON
• E21G – 3 – cutting table :2000 X 750 MM -Cutting plate 500 X 700 MM-Power :30TON
• E21G – 4 – cutting table : 2000 X 750 MM -Cutting plate 700 X 700 MM- Power :30 TON
• E21G – 5 – cutting table : 2000X 750 MM -Cutting plate 500 X 750 MM-Power : 30 TON
• E21G – 6 – cutting table : 2000 X 750 MM -Cutting plate 750 X 750 MM-Power : 30 TON
• E21G – 7 – cutting table : 2000 X 530 MM -Cutting plate 530 X 530 MM- Power :30 TON

Features:

• Cutting precision with decimal tolerance
• Minimum consumption of the nylon pad
• Comands with touch-screen
• Lighting led spotlights
• Storage holders incorporated in the shoulders
• Protection photocells
• Touch screen
  • Real time verification of the production progress
  • Modification of production batches
  • Access to the historical archive of the machine which allow correct and periodic maintenance.

• Comands control that allows free access to the working table

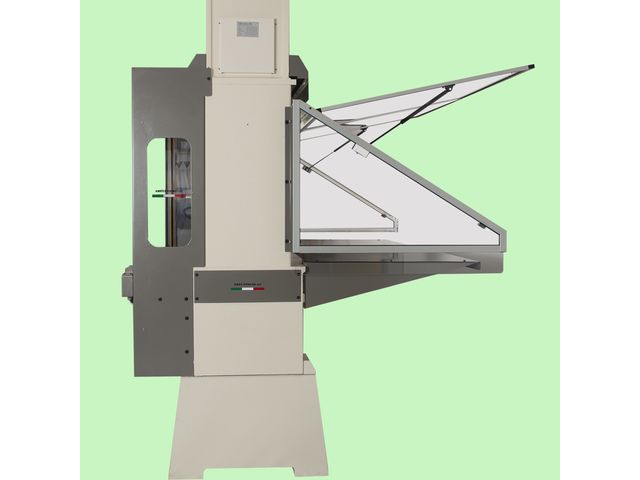

• Rear protection openable with gas springs
• Rear table for all versions
• The machine is equipped with removable feet to reduce the maximum height for transportation operations
• Display of motor parameters
• Material feeder roller 120 mm opening by electric control
• Rolls frame to be posizioned behind the material feeder versions : 1700 mm /2000 mm – 4 or 8 place
• Drawers for dies integrated in the structure of the machine
