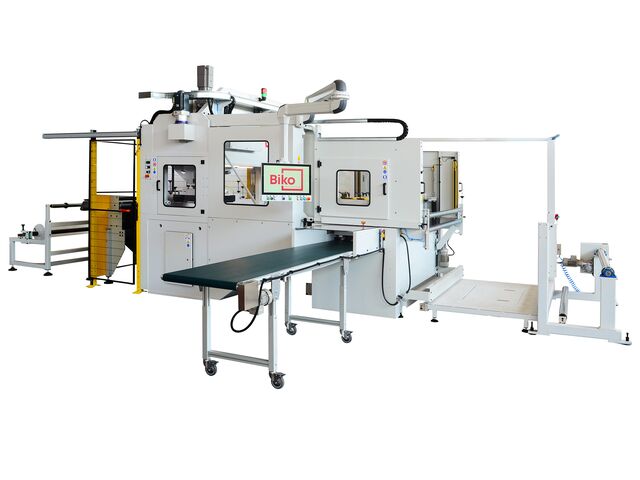

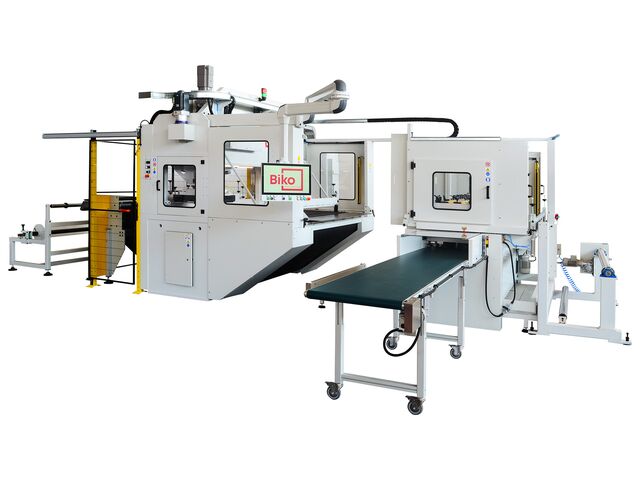

The Die Cutting machine type EDP-W represents the highest automated system to cut various types of materials into the desired shapes.
Feeding of material is automatic and managed by a transportation conveyor running together with a beam holder.
Machine power permits to cut shapes of various sizes.
From light to heavy materials and of different thicknesses could be processed. EDP-W has a wide range of configurable cutting forces and cutting head surface.
TECHNICAL DATA
-
Useful material width up to 2050 mm
-
Fully electrical machine, no hydraulic systems involved
-
Feeding system by pressing beam working against motorized conveyor
-

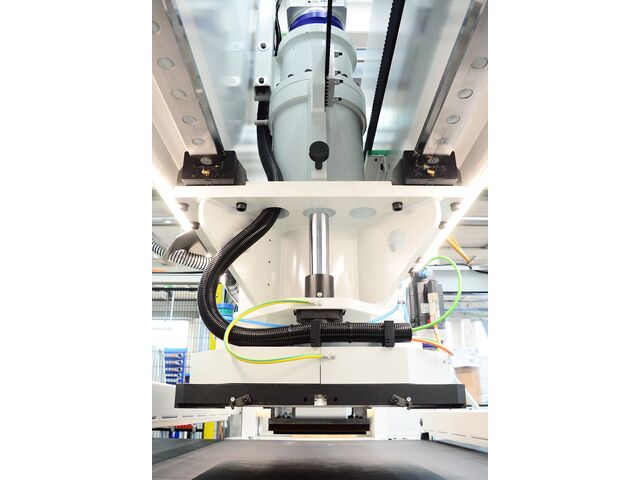

Punching system mounted on traveling head covering the whole board width
-
25 tons of cutting force (45 and 60 tons available)
-
Able to cut more web layers at the same time
-
600 x 600 mm cutting tool mounting board (1000 x 1000 mm also available)
-
Head displacement by servo motor for accurate cutting tool position
-
Cutting against dedicated conveyor belt or on counter board. Board oscillates on the X-Y axis
-
In case of die with hole punches scrap material is automatically collected and vacuumed from the cutting tool
-
A dedicated software manages the whole process and a touch screen allows the operator to change all the settings
-
Control software is organized into recipes, easy to recall
-
The touch screen gives the possibility to optimize the position of the cutting footprints so as to minimize waste material as much as possible
OPTIONS
-
Different cutting tonnage
-
Cutting head rotating on its axis 180°
-
Automatic Die Change
-
Unwinders for Jumbo Rolls
-
Automatic stacking system
-
Waste Winder
SIZE AND POWER (EDP-W-1650 MODEL, WITH 2 UNWINDERS AND STACKING SYSTEM)
-
Overall machine dimensions: 7.0 x 7.1 x 3.0 m
-
Approx. weight: 13,000 kg
-
Installed power: 18 kW
-
Air consumption: 200 Nl/h
