“ Any type large size envelope close die cutting. Four corner cutting for pocket type and wallet type envelopes. ”

Ask for a quote

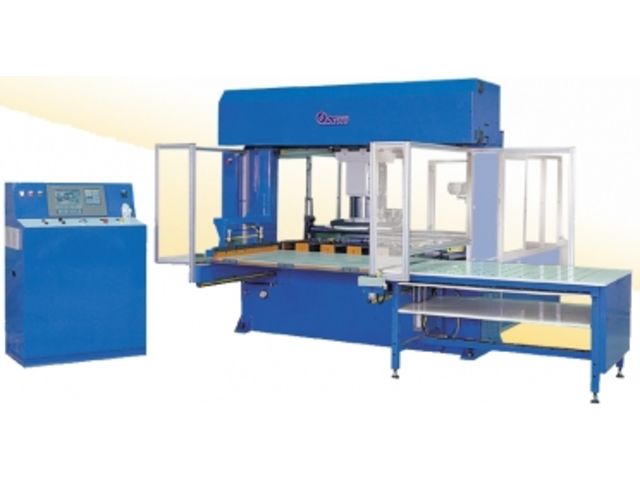

Presentation

Head driven by double chain with frequency converter cushion system to stop at one cutting position with position accuracy ±0.2mm
Working capacity up to 400,000 blanks per 8 hours with maximum material stack thickness up to 60mm
Die lubrication for clean cuts and longer die life
Cutting pad shifter extends pad life
Optional adjustable die holder allows for cutting many different sizes of envelope with the same four corner dies, thus saving the cost of expensive dies
Maximum blank size 480×550mm (THNC-N25) / 600×600mm (THNC-N30)
Optional pneumatic head center ejector ensures maximum cutting size accuracy for stack material
Optional four corner dies
Optional front and rear waste removal conveyor belts

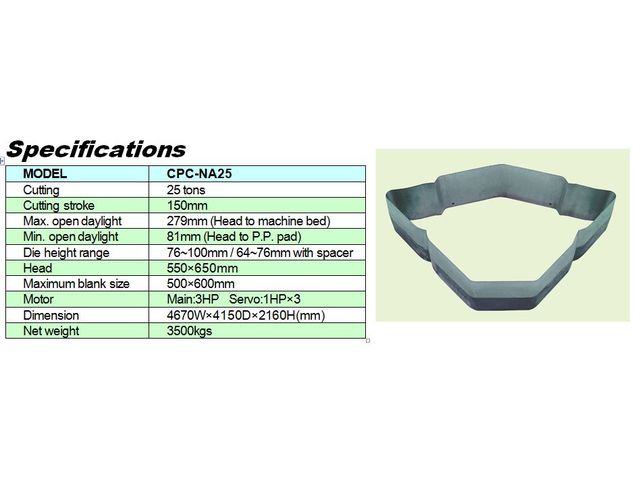

Technical features

Cutting : 25 T Cutting stroke : 150 mm Max. open daylight : 279 mm (Head to machine bed) Min. open daylight : 81 mm (Head to P.P. pad) Die height range : 76 - 100 mm / 67 - 76 mm with spacer Head : 550x650 mm Maximum blank size : 500x600 mm Motor : Main:3HP Servo:1HPx3 Dimension : 4670Wx4150Dx2160H mm Net weight : 3500 kgs
