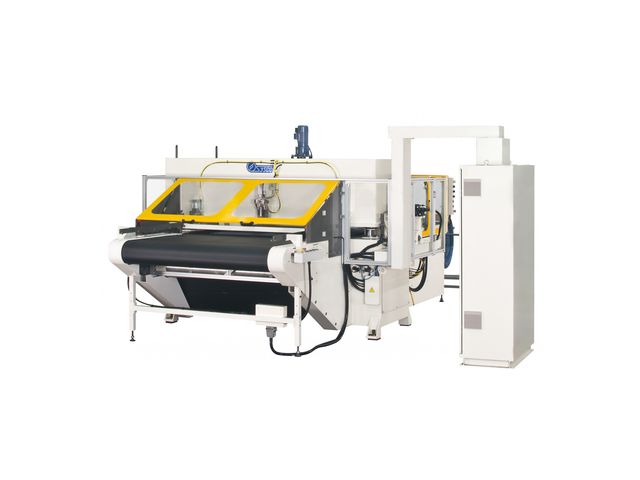

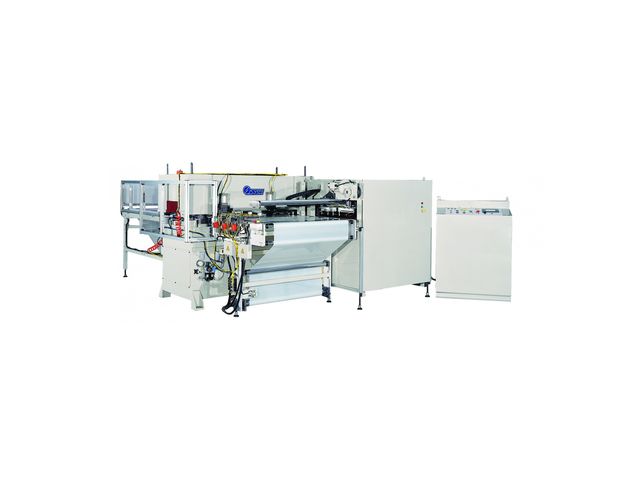

Automatic Full Head Die Cutting Press ABC

Cutting press

“ Options (lamination station, waste box, male and female dies, heating the upper plate, printed mark detection, etc..) are all possibilities to meet your needs. ”

Ask for a quote

Presentation

- Four columns press with mechanical balancing system - SYSCO exclusive
- Cutting power from 30 to 400 Tons
- Cutting area from 900 x 600 to 2500 x 1200 mm
- Cutting stroke from 110 to 250 mm
- 4 manual or motorized mechanical stops accuracy + / - 0.01 mm
- Trough cutting or kiss cutting on Picard steel plate 60 HRC accuracy + / - 0.01 mm
- Slow down speed of the bridge: 10 mm before touching the material
- Quick change of dies
- Touch screen control in different languages
- Use of electrical, hydraulic and pneumatic standardized
- Safety guards protection and / or photocells Class 4
- Meets C.E

Technical features

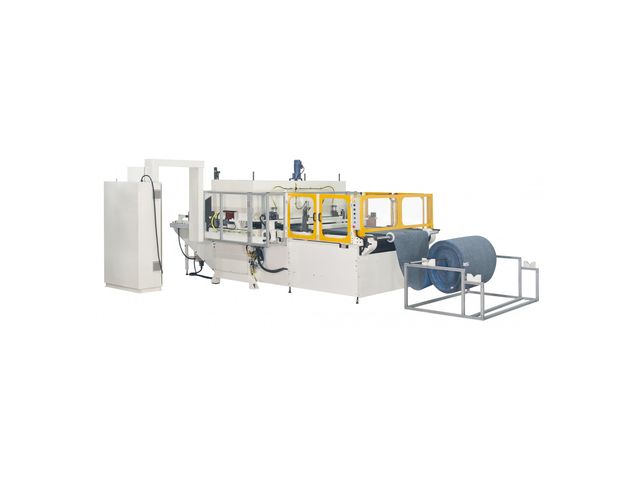

Feeding material by motorized conveyor belt Clamping beam feeding system with mechanical or motorized stops Speed up to 30m/min with accuracy positioning of + / - 0.2mm per servomotor Material coming from rolls or sheets
