XVC1000/1100 HDR Camera series for welding and additive manufacturing monitoring

Camera for industrial vision

“ - Very high dynamic range of 140dB (no saturation) - Version with color allows to see both the arc and the scene (welding bath, heat affected zone) with high quality - Camera with embedded FPGA for image processing - Opto-isolated GPIO (no external disturbance from surrounding power supplies or motors) ”

Ask for a quote

Presentation

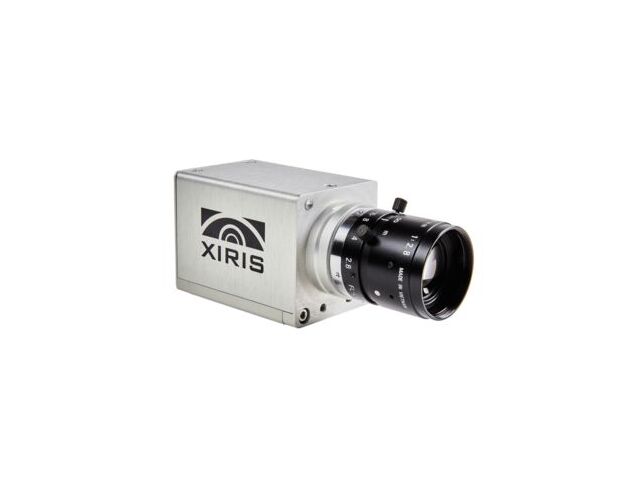

The XVC 1000/1100 series of all-digital welding cameras is designed to monitor all open arc welding processes or metal additive manufacturing processes (MAM, DED) for OEMs, advanced end users or laboratory environments.

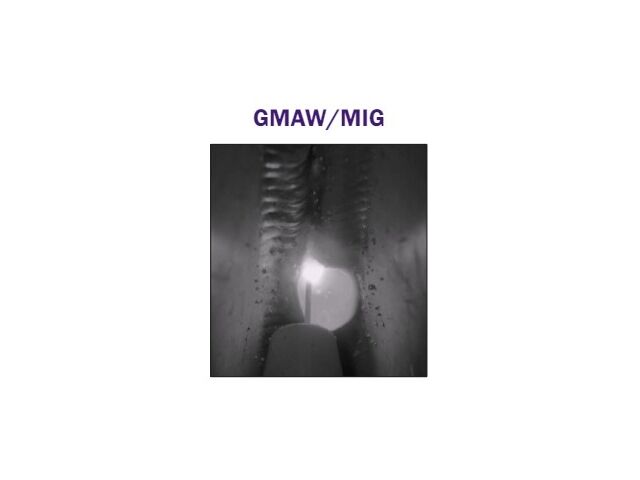

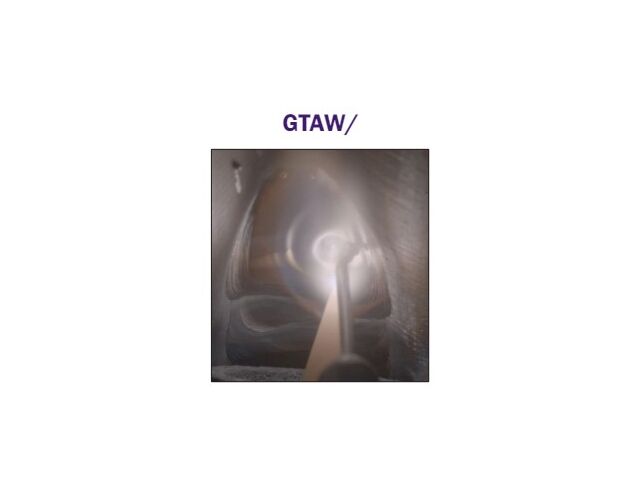

These cameras can address the TIG/GTAW, MIG/GMAW, plasma or laser markets and allow users to improve their yield and quality.

It offers the following key features:
- High dynamic range (HDR 140dB) images in monochrome (XVC-1000) or color (XVC-1100).
- Remote monitoring up to 100 meters
- C/CS mount for custom optics
- Up to 55 fps @ 1280 x 1024 pixels in 8 or 12bit
- PoE interface

It comes with WeldStudio software running under Windows 7, 8 or 10 that allows you to control camera settings, capture images and make video recordings.

Technical features

2/3 inch HDR CMOS monochrome (XVC-1000) or color (VXC-1100) IR + UV filter Dimensions: 40x43x65mm (without lens) PoE or 12V nominal (10-16V) via GPIO interface 6W max CS/C Mount Output in GiGE 8 or 12 bits or UART Camera synchronization via software or external trigger Weight: 135g (without optics) Cables up to 100m CE, FCC-B and RoHS compliant
