XVC-S vision camera for submerged arc welding

Camera for industrial vision

The capaNCDT MD6-22 from Micro-Epsilon is a capacitive measuring device designed for mobile, high precision gap and distance measurements. Robust but lightweight, this dual-channel handheld gauge is...

“ - Clear, high-contrast color CCD image - Real time scene viewing - 15" screen compatible - Single or dual reticle for tracking the welding electrode - Integrated lighting with two powerful white LEDs - Many options including XVC-S OEM box ”

Ask for a quote

Presentation

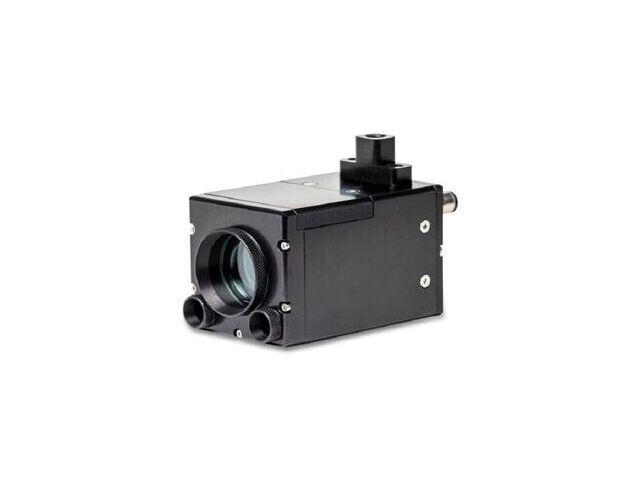

The XVC-S vision camera from Xiris Automation Inc. has been designed specifically for submerged arc welding monitoring. It is ideal for industries with thick steel plates (or stainless steels) or long welds typical of industries such as oil, gas, offshore

Using a VGA resolution color CCD sensor, the XVC-S has a rugged housing optimized for arc welding environments with built-in illumination, air cooling and flexible mounting options.

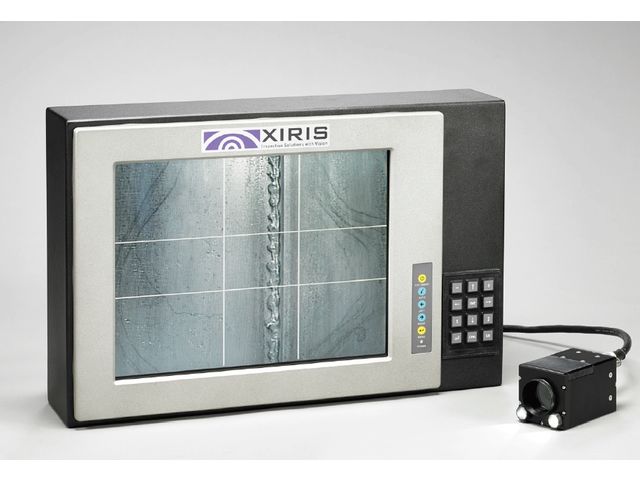

Easy to use, it comes with a monitor and controls with ergonomic buttons for quick and efficient camera setup and reticle alignment. An operator can then safely view multiple processes from a central location.

Connecting simply with a single cable (up to 50 m), operators can see defects as they occur and make adjustments to the process in progress.

Technical features

Color CCD 768x494 pixels Scene dynamics 60dB Video output : S-Video Dimensions: 60x60x100 mm Weight : 700g Power : 60 w (12VDC - 5A) Air cooling; 3-4 bar power supply required Cables 10, 20 or 30m Removable protective glass

Download the complete technical features
