XVC-700/710 HDR vision cameras for welding and additive manufacturing

Camera for industrial vision

“ - Very high dynamic range image140dB (no saturation) - Version with color allows to see both the arc and the scene (welding bath, heat affected zone) with high quality - Camera with embedded FPGA allowing image processing - Small footprint and weight of the camera - Opto-isolated GPIO (no external disturbance from surrounding power supplies or motors) ”

Ask for a quote

Presentation

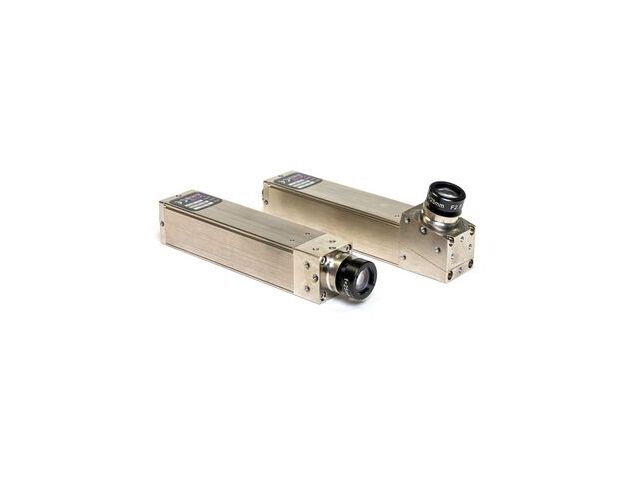

The XVC-700/710 series of all-digital welding cameras is designed to monitor all automated open arc welding processes for OEMs, advanced end users or laboratory environments.

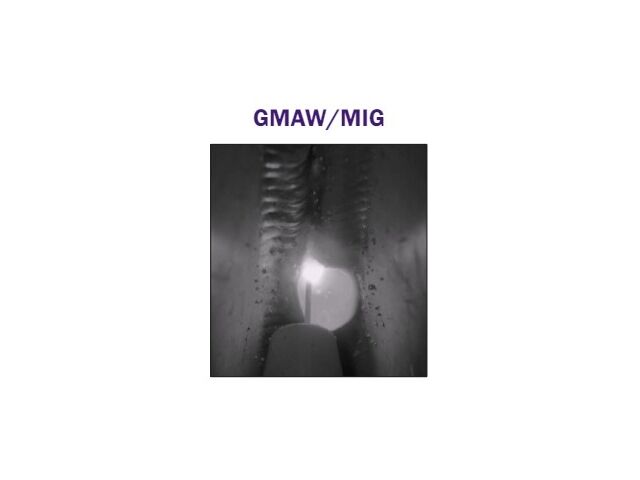

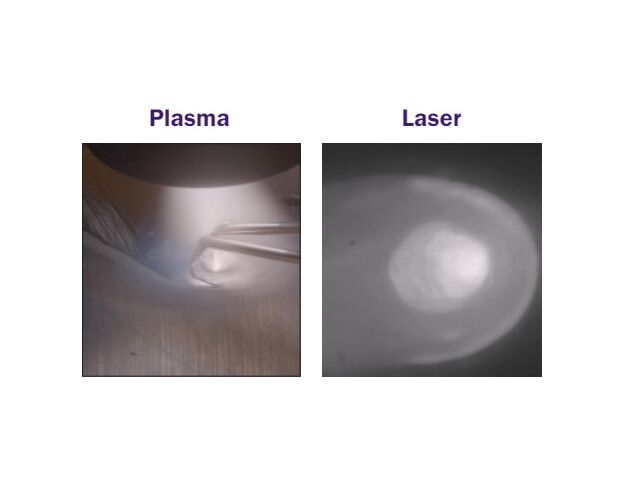

These small size, low weight cameras can address the TIG/GTAW, MIG/GMAW, plasma or laser markets. Several head tilt options are available; 0° (straight), 15° or 75° angle

It offers the following key features:
- High dynamic range (HDR 140dB) images in monochrome (XVC-700) or color (XVC-710).
- Remote monitoring up to 100 meters
- Standard S-mount (M12) or C-mount for custom optics
- Up to 55 fps @ 1280 x 1024 pixels in 8 or 12bit
- PoE interface

It comes with WeldStudio software running under Windows 7, 8 or 10 that allows you to control camera settings, capture images and make video recordings.

Technical features

2/3 inch HDR CMOS sensor monochrome (XVC700) or color (XVC710) IR + UV filter Dimensions: 22x22x107mm (0°without optics) PoE or 12V nominal (10-16V) via GPIO interface 6W max S-Mount (M12), C adapter possible Output in GiGE 8 or 12 bits or UART Camera synchronization via software or external trigger Weight: 89g (0° version without optics) Cables up to 100m CE, FCC-B and RoHS compliant
