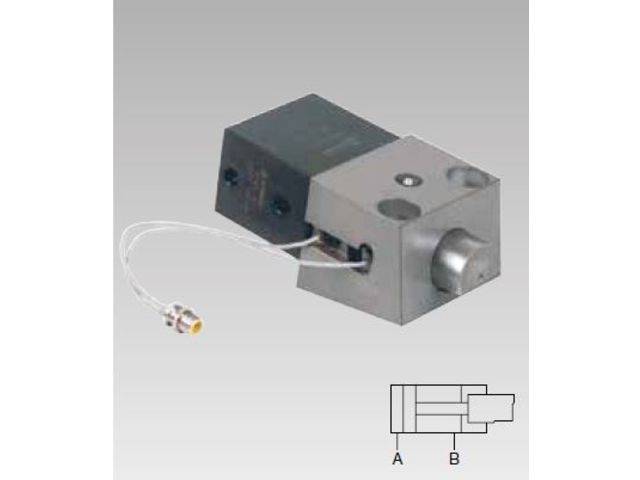

Wedge Clamps for Straight Clamping Edge - WZ 2.2451

Positioners and Tightening components

Ask for a quote Receive Documentation Contact the supplier

Application

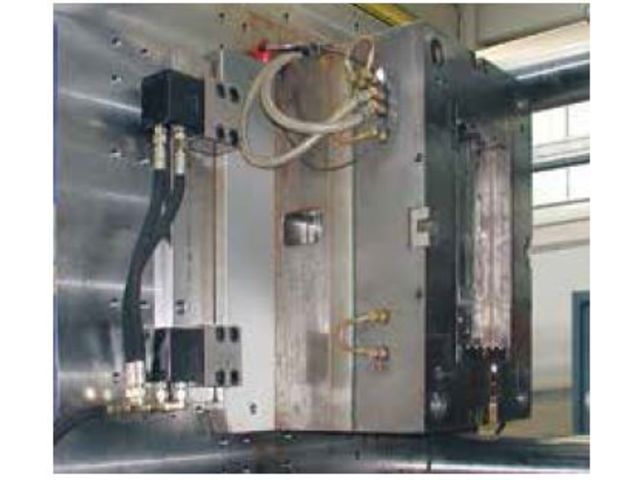

Double-acting wedge clamps are particularly suitable for safe clamping of dies with straight clamping edge on a press bed or ram or for clamping dies in injection moulding machines with Euromap mounting grid.

Description
The wedge clamps consist of a hydraulic block cylinder connected with a clamping bolt in a floating manner. Clamping cycle: the clamping bolt which is inclined by 5° performs an idle stroke and simultaneously a clamping stroke. The clamping bolt is lowered axially onto the clamping edge. The 5° angle of the housing has been determined so that the hydraulic pressure is sufficient for unclamping, despite the frictional engagement on the clamping edge. Since the clamping force is axially transmitted to the clamping point, only low side loads occur. The wedge clamp is available with or without position monitoring.

Advantages
? Safe clamping of dies with straight clamping edge
? Side loads are compensated by drill bushings
? High operational safety by position monitoring and automatic motion sequence
? Very sturdy and compact design
? Well-proven clamping element with high degree of safety and long service life
? Retracting clamping bolt ensures unrestricted mould and die change
? Minimum space requirement due to position monitoring without lateral overhang

Download the complete technical features
