ROEMHELD

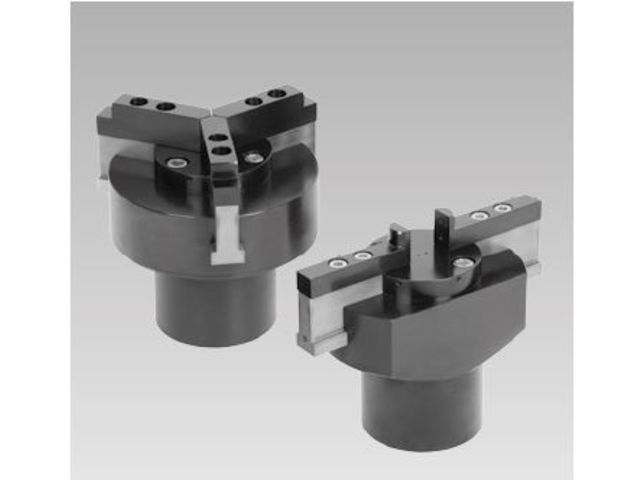

Concentric Clamping Elements H 4.306

Positioners and Tightening components

Ask for a quote Receive Documentation Contact the supplier

Application
This hydraulically-operated concentric clamping element can be equipped with especially low clamping jaws to receive workpieces with interior centrings of low depth. Suitable workpieces can directly rest on the clamping jaws so that additional support points are not required. With a combination of 2 and 3-point elements, workpieces with 2 centring holes can be exactly positioned.

Advantages
? Ideal for 5-sided machining
? Suitable for low centring depths
? Clamping jaws can be adapted to the workpiece
? Workpiece support on clamping jaws possible
? Centring repeatability 0.02 mm
? Stroke of clamping jaws 10 mm
? Connection for positive air pressure protection
? Pneumatic position monitoring
? Optional pneumatic contact control

Download the complete technical features
