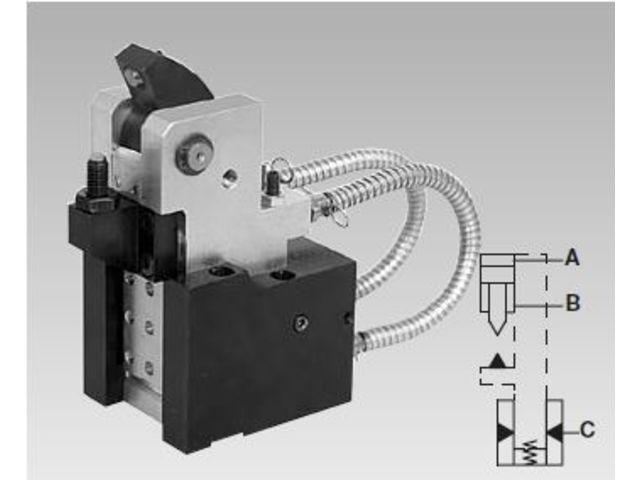

Position Flexible Clamping Claw B 1.733

Application

Position flexible clamping elements can be used for supporting and clamping of unstable workpiece sections. They adapt themselves to the position of the clamping point without deforming them. They cushion vibrations and compensate machining forces from all directions

Advantages
? Clamps position flexible within the pendulum range
? Workpiece support points adjustable and mountable in 4 positions
? Uninmpeded loading and unloading of the fixture
? Very low displacing forces act on the workpiece
? Adjustable zero position
? Compensation of machining forces from all directions
? Monitoring of the unclamping position and the end of the clamping stroke can be effected pneumatically or inductively
? Clamping lever can be swivelled into small recesses
? Double-acting clamping function
? Locking port can be controlled separately
? Oil supply optionnally by connecting threads or drilled channels
? Connecting hoses with swarf protection
? Air sealing connection to avoid entry of swarf and coolants
