STÄUBLI ROBOTICS

TX2-40 6-axis robot ESD

6 axis robot

Ask for a quote Receive Documentation Contact the supplier


The ESD line of robots is designed to prevent ElectroStatic Discharges and comes in 6-axis versions in various sizes with reaches ranging from 515 to 2,594 mm. These super high performance robots deliver the perfect level of speed, precision and reliability for handling electronic components.

ADVANTAGES OF THE TX2-40 ESD

ESD compliance guaranteed by 3 specific tests
  • Surface resistivity
  • Residual charges
  • Dissipation and transversal conductivity | Several test points covering every arm’s element

Minimize part failures and rework costs
  • Ensure that all accessible elements are dissipative to eliminate ESD risks in production.
  • Specific ESD compliant coating

Safety handle sensitive devices

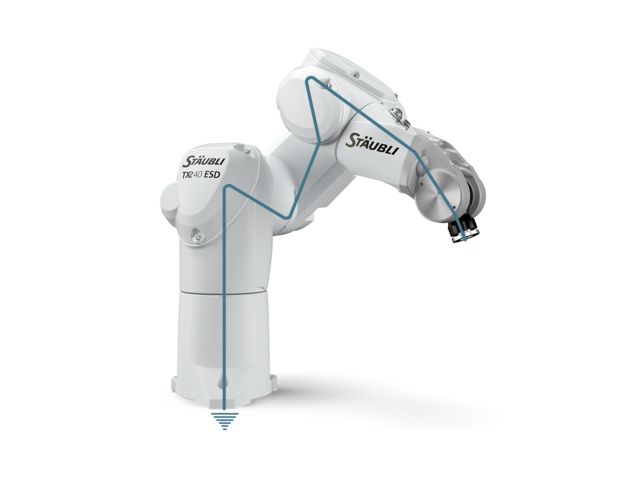

  • Each arm link connected to ground to ensure transversal conductivity.

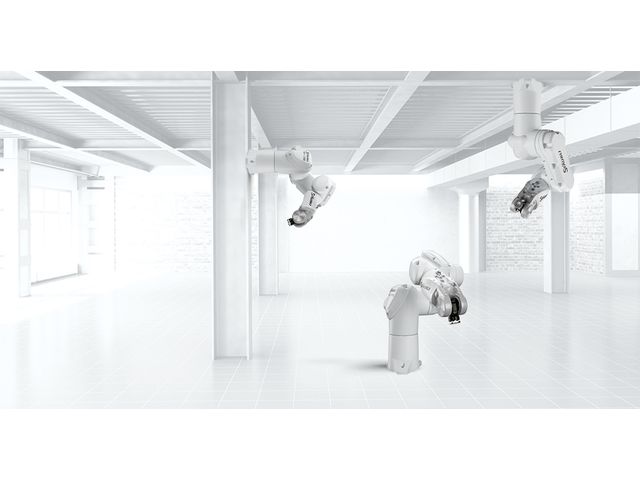

Load capacity : 2 kg Reach : 515mm Degrees of freedom : 6 Repeatability - ISO 9283 : ±0.02 mm Protection class (*wrist) : IP65 (*67) Attachment methods : 360° mounting possibility Stäubli CS9 controller
Download the complete technical features

All industries Electronic industry Assembly applications Packaging applications Automotive industry
