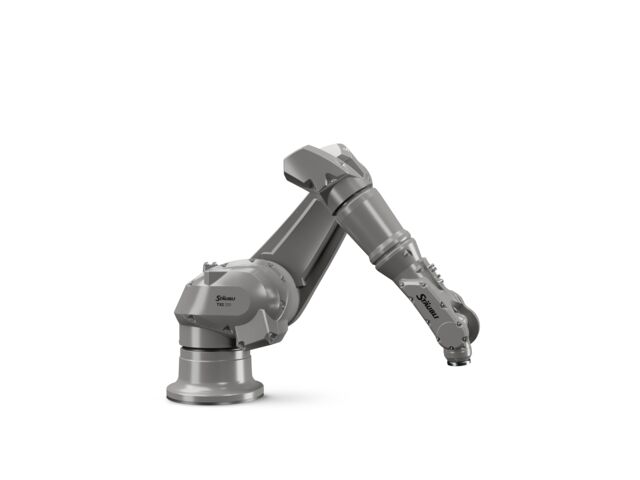

TX2-200 | TX2-200L HE 6-axis robot

6 axis robot

Ask for a quote

Presentation

The TX2-200 HE robot is part of the “Humid Environment” line developed specifically for processes in wet environments. The TX2-200 HE has been designed to resist corrosion even under extreme conditions. It can be used in very humid environments for applications such as water jet cutting, machine tool loading/unloading, and various food operations.

ADVANTAGES OF THE TX2-200 HE

Hygienic design
*Hygienic design aligned with EHEDG recommendations
*Easy accessibility, cleanability and decontamination
*NSF H1 compliant food oil with no loss of performance
*No micro organic penetration due to design and pressurization

Stands up to extreme conditions
*Fully encapsulated design (up to IP65/67)
*Integrated user harness, tubing and valves
*All connections protected under the base
*Unrestricted pH suitability from 4,5 to 8,5 (with validation from 2 to 12 feasible)
*Kinematic pressurization for advanced tightness demands
*Robust surface treatment/coating and stainless steel joints

Technical features

Degrees of freedom : 6 Load capacity TX2-200 : 170 kg | TX2-200L : 110 kg Reach TX2-200 : 2209 mm | TX2-200L :2609 mm Repeatability TX2-200 : ± 0.045 mm | TX2-200L : ± 0.055 mm Protection class (wrist) : IP65 (67) Attachment methods : Floor or ceiling Stäubli controller : CS9 HP
