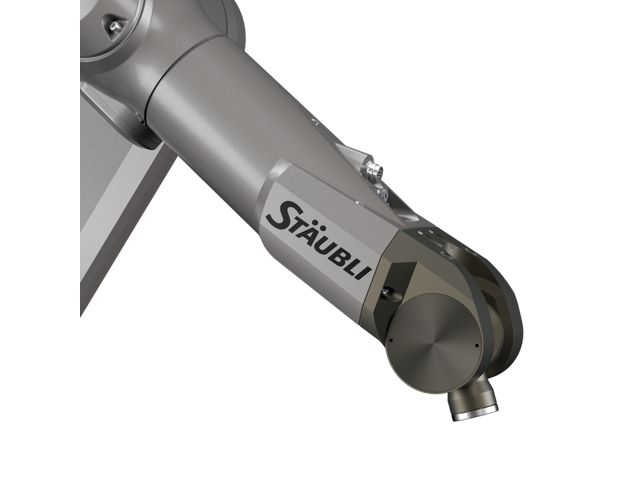

TX2-90 | TX2-90L | TX2-90XL HE 6-axis robots

TX2-90 | TX2-90L | TX2-90XL HE 6-axis robots - STÄUBLI ROBOTICS

TX2-90 | TX2-90L | TX2-90XL HE 6-axis robots - 6 axis robot

TX2-90 | TX2-90L | TX2-90XL HE 6-axis robots - produit présenté par STÄUBLI ROBOTICS

TX2-90 | TX2-90L | TX2-90XL HE 6-axis robots

6 axis robot

Ask for a quote

Presentation

The TX2-90 HE robot is part of the “Humid Environment” line developed specifically for processes in wet environments. The TX2-90 HE has been designed to resist corrosion even under extreme conditions. It can be used in very humid environments for applications such as water jet cutting, machine tool loading/unloading, and various food operations.

ADVANTAGES OF THE TX2-90 HE

Hygienic design

Hygienic design aligned with EHEDG recommendations
Easy accessibility, cleanability and decontamination
NSF H1 compliant food oil with no loss of performance
No micro organic penetration due to design and pressurization

Stands up to extreme conditions

Fully encapsulated design (up to IP65/67)
Integrated user harness, tubing and valves
All connections protected under the base
Unrestricted pH suitability from 4,5 to 8,5 (with validation from 2 to 12 feasible)
Kinematic pressurization for advanced tightness demands
Robust surface treatment/coating and stainless steel joints

Technical features

Load capacity TX2-90 : 14 kg | TX2-90L : 12 kg | TX2-90XL : 7 kg Stäubli CS9 controller Reach : 1450 mm Degrees of freedom : 6 Repeatability - ISO 9283 : ±0,03 mm | ±0,035 mm | ±0,04 mm Protection class (*wrist) : IP65 (*67) Attachment methods : 360° mounting possibility
