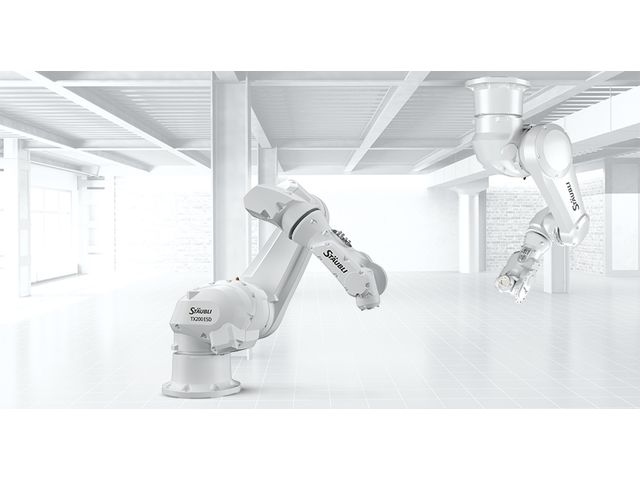

TX200 | TX200L 6-axis robot ESD

6 axis robot

Ask for a quote

Presentation

The ESD line of robots is designed to prevent electrostatic discharges and comes in 6-axis versions in various sizes with reaches ranging from 515 to 2,594 mm. These high performance robots deliver the perfect level of speed, precision and reliability for handling electronic components.

ADVANTAGES OF THE TX200 ESD

ESD compliance guaranteed by 3 specific tests

Surface resistivity
Residual charges
Dissipation and transversal conductivity | Several test points covering every arm’s element

Minimize part failures and rework costs

Ensure that all accessible elements are dissipative to eliminate ESD risks in production.
Specific ESD compliant coating

Safety handle sensitive devices

Each arm link connected to ground to ensure transversal conductivity.

Technical features

Load capacity TX200 : 130 kg | TX200L : 80 kg Reach : 2594 mm Degrees of freedom : 6 Repeatability - ISO 9283 : ±0.06 mm Protection class (*wrist) : IP65 (*67) Mounting options : Floor/ceiling Stäubli CS8 series controller : CS8C

Download the complete technical features

Usage scope

All industries Electronic industry Assembly applications Packaging applications Automotive industry
