TIN WIRE FOR ELECTRONIC SOLDERING (ECO 4)

Welding wires

“ - High and fast wetting properties. - Excellent reliability and solidity of the welded joint. - High electrical conductivity. - Excellent performance and compatibility with a wide range of flux technologies. ”

Ask for a quote

Presentation

ECO 4 (Sn96.5-Ag3-Cu0.5) is a high performance lead free alloy composed of tin, silver and copper, with a high degree of fluidity guaranteed. This composition complies with ISO 9453: 2015 (alloy 711) and RoHS compliant. This makes our ECO 4 alloy useful in different processes including:

Wave, selective and dip welding.
Insertion and reworking of components for surface mount technology for the automotive electronics assembly industry.

TECHNICAL DATA - ECO 4

128/5000
Resultados de traducción
Melting point (ºC) 217/220 Density at 20 ° C (gcm-3) 7.38 Tensile strength (MPa) 49 Elongation (%) 19 (figure 1a) Hardness (HB) 15
AVAILABLE FORMATS
Diameter: 0.5mm - 6mm

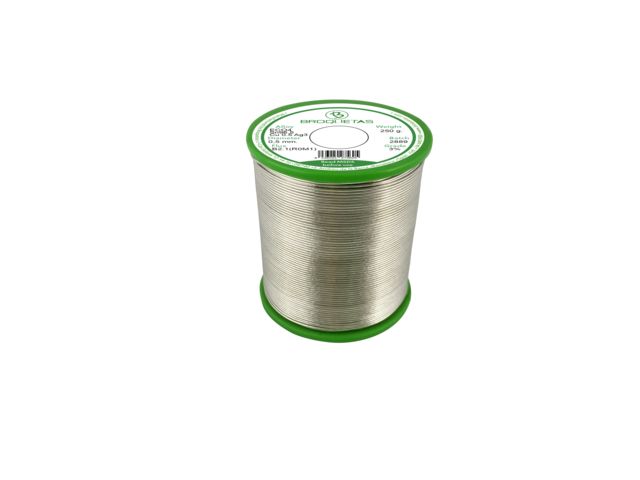

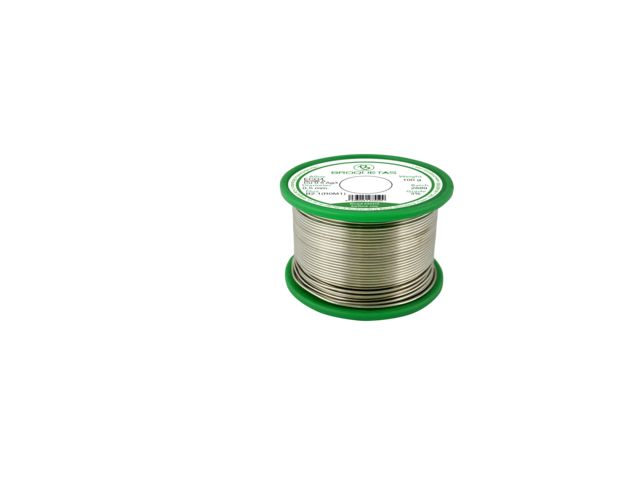

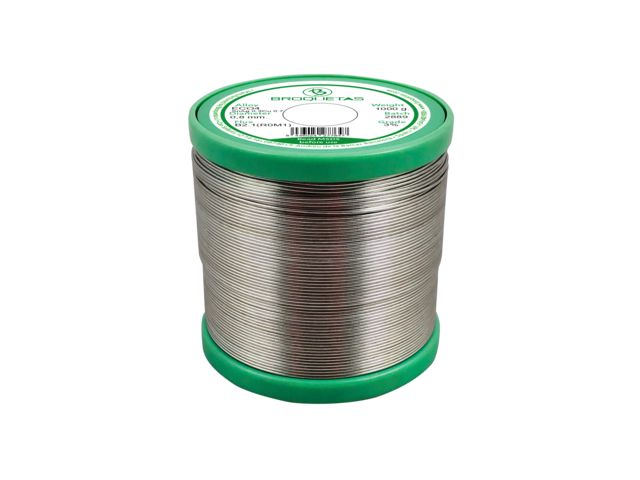

Plastic spools of:
100 g .: 30 units / box
250 g .: 40 units / box
500 g .: 20 units / box
1 kg .: 10 units / box
2 kg and 4 kg: on request

** Consult other formats.
