TIN WIRE FOR ELECTRONIC SOLDERING (ECO 1)

Welding wires

Machines on specifications showing the general features of the PS 3000 range but individual operation or coupled up to 3200 t capacity. x 18 m or 4800 t. x 27 m (and even more) Gooseneck increased (up...

“ - High quality binary alloy for mechanical and electrical applications where they are needed - Lead free materials. - Excellent reliability and solidity of the welded joint. - Excellent resistance to thermal and mechanical fatigue. - Very good wetting properties. ”

Ask for a quote

Presentation

ECO 1 (Sn99.3Cu0.7) is a lead-free eutectic tin-copper alloy formulated with the highest quality raw materials. The composition of this alloy complies with ISO 9453: 2015 (alloy 401) standards and is RoHS and REACH compliant. This makes our ECO 1 alloy useful in different processes including:

Wave, selective and dip welding.
Insertion and reworking of components for surface mount technology for the automotive electronics assembly industry.

TECHNICAL DATA - ECO 1
Melting point (ºC) 227
Density at 20 ° C (gcm-3) 7.27
Tensile strength (MPa) 38
Elongation (%) 51.5 (figure 1a)
Hardness (HB) 11

AVAILABLE FORMATS
Diameter: 0.5mm - 6mm

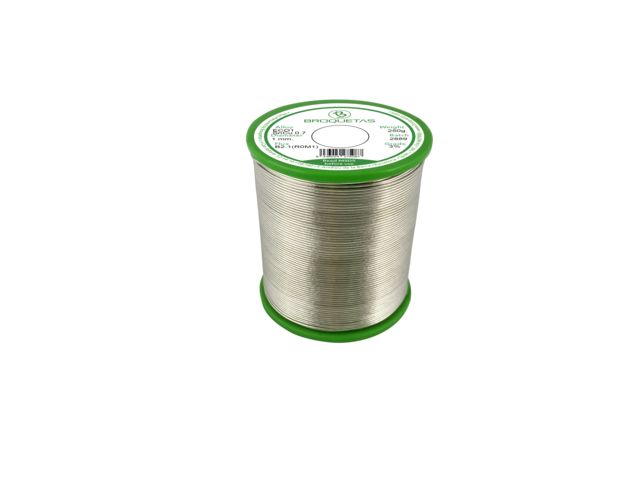

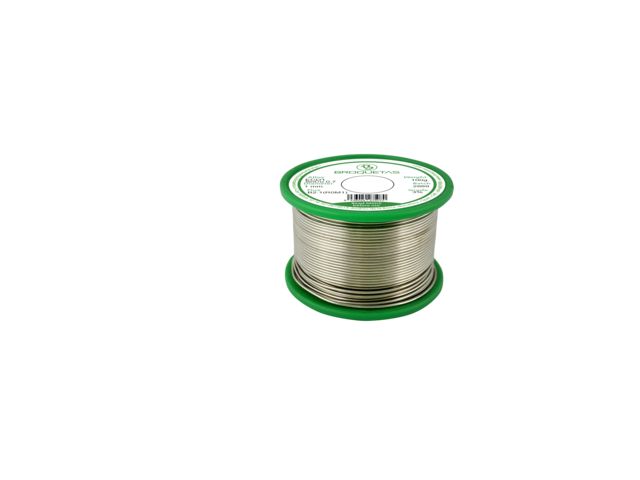

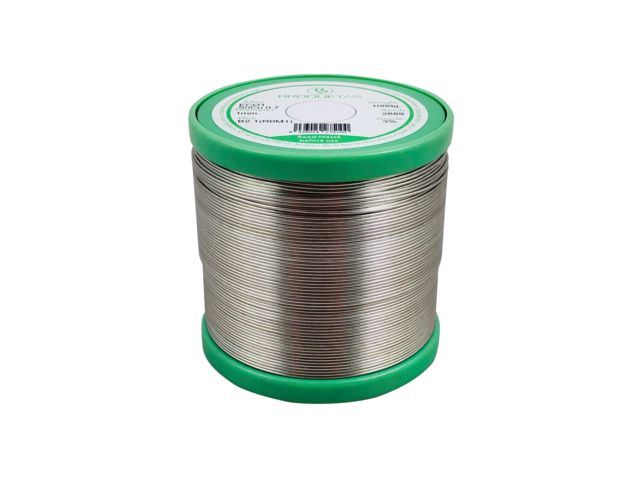

Plastic spools of:

100 g .: 30 units / box
250 g .: 40 units / box
500 g .: 20 units / box
1 kg .: 10 units / box
2 kg and 4 kg: on request

** Consult other formats.
