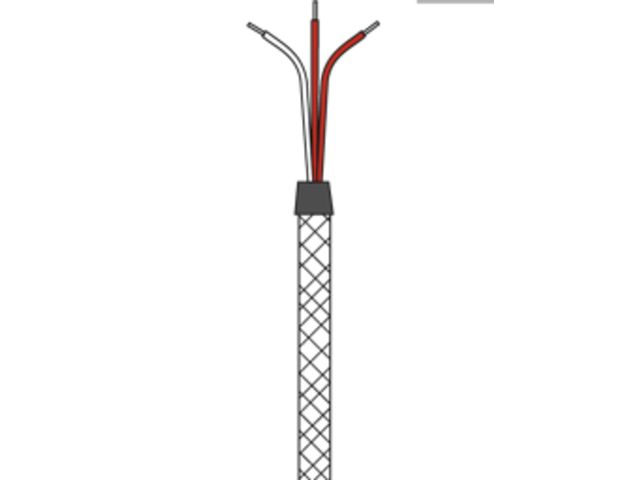

temperature probe with cable Series SI 1109

temperature probe with cable Series SI 1109 - THERMIBEL S.A.

temperature probe with cable Series SI 1109 - Temperature probe

temperature probe with cable Series SI 1109

Temperature probe

Ask for a quote

Presentation

Sensing element

Pt100 single
Ceramic or thin layer element
with tolerance class B or A according to IEC 60751 (EN 60751)

Temperature range

Standard -100 to +300°C

External sheath

AISI 316L
Length: standard 25 mm, other lengths available on request.

Process connection

M8 x 1,25 mm thread by default, other threads available on request.

Cable

Glass fibres.
Cable length: 1 meter, other lengths available in option.

Wiring

1 x 3-wire connection. (1 x 2, 1 x 4-wire connection available on request)

APPLICATIONS

General purpose machinery and appliances.
