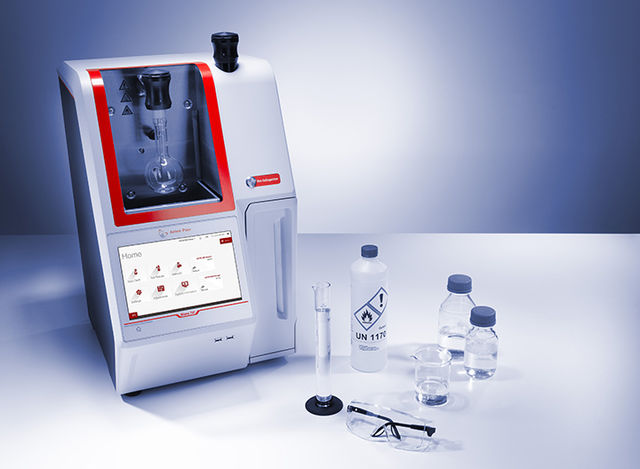

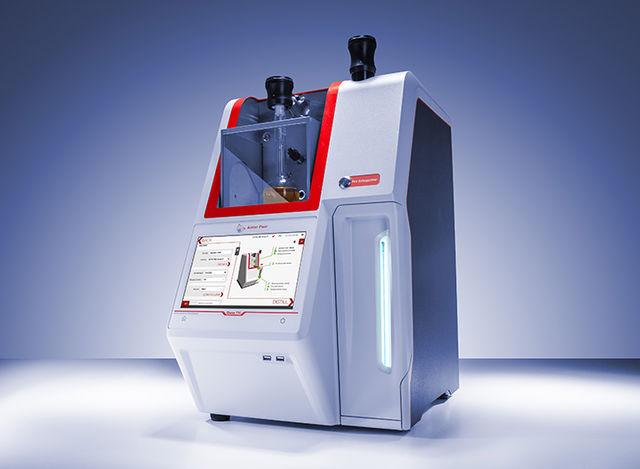

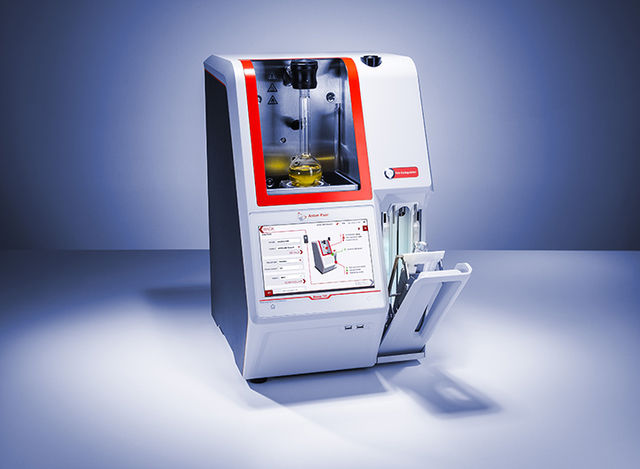

Atmospheric Distillation Analyzer: Diana 700/300

Analyzers

Find out more

“ A convenient multi-plug with an indestructible temperature sensor To provide a smooth operator experience and increase Diana 700’s usability, we combined the vapor temperature sensor with the flask holder. The result? A multi-plug equipped with either an indestructible, metal temperature sensor or with a classic glass sensor. In a few seconds, you can install the distillation flask (125 mL or 200 mL) in the correct position with just one hand. The multi-plug’s integrated memory space holds up to 20 calibration points of the temperature sensor which are automatically applied when the multi-plug is mounted. This means when you exchange the multi-plugs, there’s no need for recalibration. A smart user interface with condition monitoring The Diana series has the same intuitive user interface you’ve come to know from other Anton Paar products. With Diana 700’s smart condition monitoring, we’ve automated your measurement setup and turned manual handling into a thing of the past. It has different modes for different user levels, including a “Guided Mode” for beginners and an “Advanced Mode” for more experienced users. The former takes you step-by-step through the instrument’s startup procedure, while the latter displays the state of each instrument component and lets you jump right into the distillation process. Diana 300 has a basic condition monitoring system that includes the most safety-relevant components along with a modern user interface. Designed with safety in mind In case of an emergency, the Diana instruments come with a fire sensor and an internal fire extinguisher that’s initiated automatically or with the push of a button. For Diana 700, we built the automatic heater shield to surround the flask, which reduces your risk of coming into contact with hot components during measurement. It monitors all relevant conditions that are required for the distillation setup, including whether you have chosen the right flask, finished condenser cleaning, and/or selected the correct flask support board. As soon as the distillation process starts, the heater shield and heater move up automatically. With its status light – red for hot, blue for cold – you can always see the progress of the distillation process from a distance. Although Diana 300’s heater shield is manually operated, the flask temperature is displayed on the dashboard, which lets you know when it’s safe to touch the flask after distillation. Highly accurate volume reading For volume detection, the Diana series leverages the high accuracy of contact imaging sensor technology (CIS) to achieve precise determinations of the sample volume (resolution is 0.01 mL). CIS technology does not have moving parts – letting you avoid instrument malfunction – and it can continuously follow the liquid level in the cylinder – delivering highly accurate results. Thanks to the tight jacketing of the cylinder, the chamber ensures excellent sample and cylinder temperature stability. An unique cold trap prevents condensation caused by high humidity and reduces evaporation losses of volatile organic compounds (VOCs). Diana 700 can also measure the initial volume before the test starts and correct it to 100 % volume (if needed). Efficient tempering technology The Diana 700 distillation analyzer uses highly efficient Peltier technology, which lets it quickly switch between different distillation groups and reach all required temperatures in less than five minutes. It offers fully automated, real-time optimization for the entire distillation process. You don’t need to configure sample-specific heat parameters. After distillation, the heater moves down automatically, and the flask is cooled to a safe handling temperature as quickly as possible. Diana 300 offers multiple preconfigured test methods for sample-specific heat parameters. The “Optimize and Restart” function lets you configure test methods with optimal heat parameters for any specific sample. Hassle-free connectivity, easy storage With Diana 700, enjoy the benefits of connectivity, storage, and data management on a single platform. Since Diana 700 works across numerous data interfaces – network file-share via Wi-Fi, LAN, LIMS, and AP Connect, our in-house software platform – sharing information has never been easier. After each distillation, the Diana series displays concise test reports with your most important measurement results. No need to worry about storage, since one instrument can store up to 4,000 measurements, and you can transfer these with user-defined output reports. Complete your data management with featured manual and automatic export functions. While not as powerful, Diana 300 can still store up to 200 measurements, and you can easily save all of your measurement results on a USB stick. You can also connect the instrument to an external printer. ”
