ROEMHELD

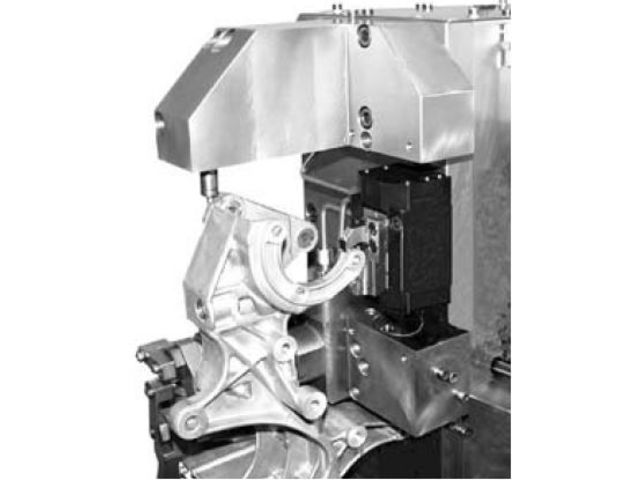

Position Flexible Clamp B 1.732

Positioners and Tightening components

Ask for a quote Receive Documentation Contact the supplier

Description

The position flexible clamp is a small vice with two movable jaws, which are operated by a common hydraulic port. Independently of its position within the clamping area, the workpiece will be clamped nipper-like (floating). By means of a separate locking port, both jaws are hydraulically locked. The clamped workpiece can no longer “float”, if the machining forces are introduced. Oil supply to the locking port can be controlled by a sequence valve or a second clamping circuit.

Advantages
? Compact 2-jaws clamping element
? For exterior and interior clamping
? Clamping jaws easily adaptable
? Position flexible within the clamping range
? Can be adapted to big workpiece tolerances
? Very low displacement forces act on the workpiece (see: Important notes)
? Compensation of machining forces from all directions
? Double-acting clamping function
? Locking port can be controlled separately
? Mounting from 4 sides possible
? Oil supply alternatively via fittings or drilled channels
? Clamping slide can be greased

Download the complete technical features
