ISO 6150 C safety quick couplings for compressed air - SN 40 aluminium series

Quick pneumatic fitting

“ ✔ Anti-whiplash safety: ISO 4414 STANDARD ✔ ISO 6150 C-10 and ISO 6150 C-14 ✔ Double pulse ✔ Hand operated ”

Ask for a quote

Presentation

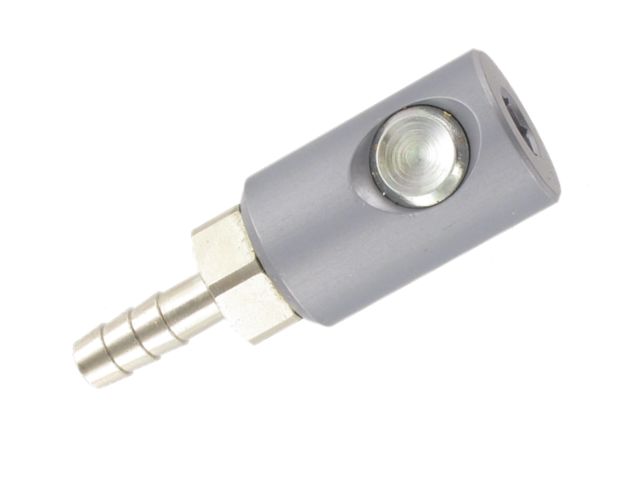

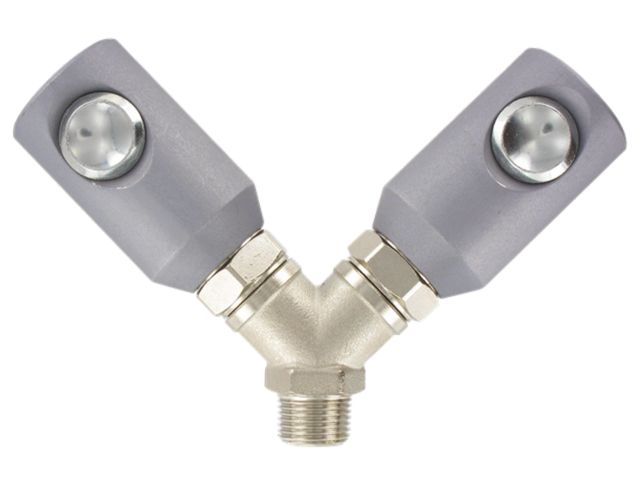

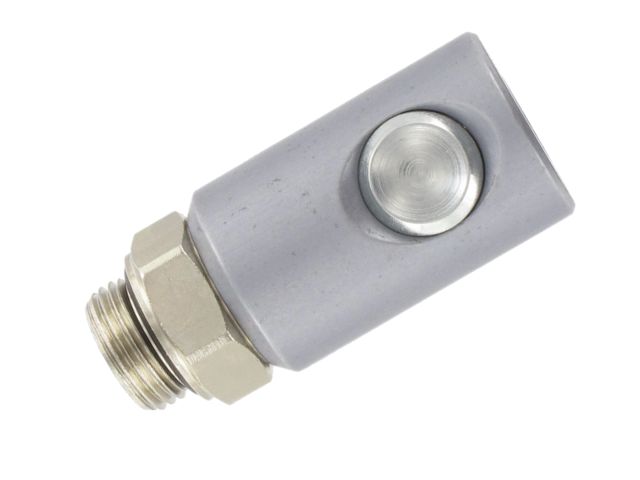

SENGA's SN 40 series of safety quick couplings are suitable for compressed air applications. With their anodised aluminium body, they have a nickel-plated brass swivel base and various types of connection: cylindrical BSP male or female, splined sleeves etc...

With nominal diameters of 5.5 and 8 mm, these safety quick couplings guarantee anti-whiplash safety in accordance with ISO 4414. They provide a cross-sectional area of 23.75 mm² and 50.26 mm².

The safety couplings of the SN 40 Series operate at a pressure of 0 to 12 bar (DN5.5 mm) and 0 to 10 bar (DN8 mm). They provide a flow rate of 680 Nl/min and 1460 Nl/min respectively (at 6 bar, Δp = 1 bar).

Discover the SENGA range in our catalogue.

https://www.senga.fr/en/products-e-shop

Technical features

Anti-whiplash safety: ISO 4414 STANDARD Safety quick couplings (safety quick couplings) Double trigger disconnection of nipple ISO 6150 C-10 and ISO 6150 C-14 Working pressure: between 0 bar and 12 bar (DN5.5) and between 0 bar and 10 bar (DN8) Working temperature: between -20 °C and +70 °C Flow rate: 680 Nl/min and 1460 Nl/min (at 6 bar, Δp = 1 bar) Materials: anodised aluminium, zinc-plated and hardened steel, nickel-plated brass DN 5.5 and DN 8 mm Interchangeable with Rectus 18 and 84 - CEJN 291 - PREVOST CSI 06 and CSI 08 - STAUBLI NSI
