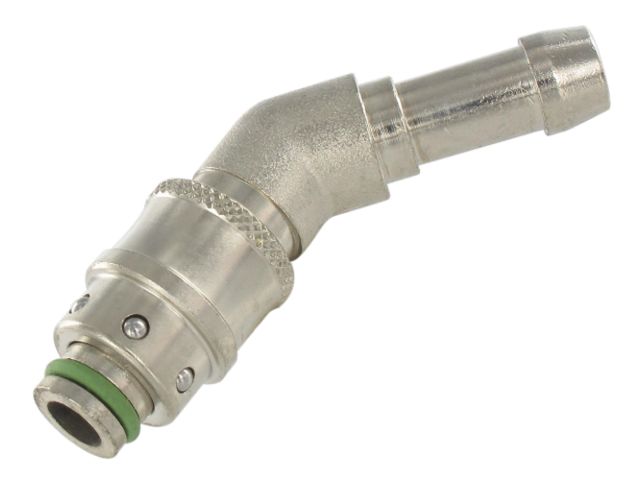

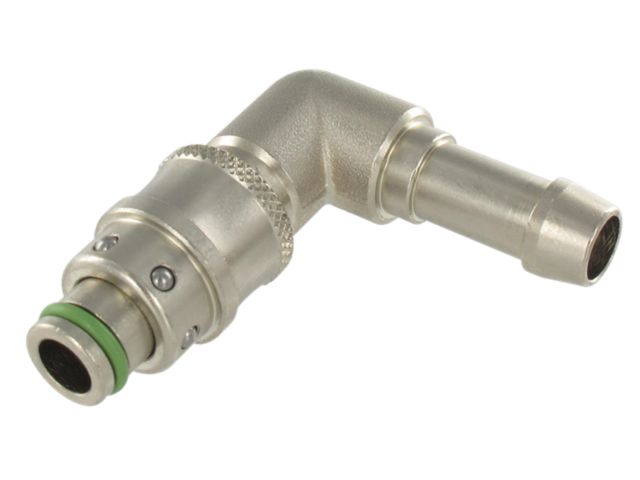

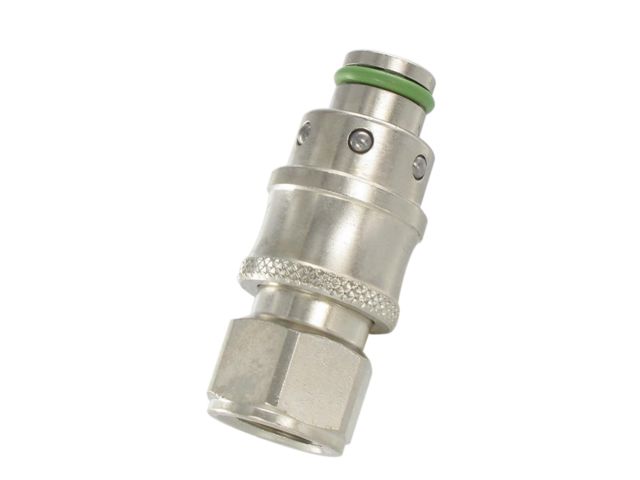

Couplings for plastic injection moulds - Series 400

Quick pneumatic fitting

“ ✔ For plastic injection moulds ✔ RoHS 2011/65/EC and REACH 1907/2006 ”

Ask for a quote

Presentation

The Series 400 couplings are marketed by SENGA and are mainly used in applications with plastic injection moulds. They are manufactured in compliance with RoHS 2011/65/EC and REACH 1907/2006.

Featuring a nickel-plated brass body, stainless steel spring, steel balls and FKM seals, these plastic injection mould couplings are designed to operate in a pressure range of 0 bar to 15 bar and at temperatures ranging from -15°C to +200°C.

Two cross sections are available: 8 mm and 12 mm.

https://www.senga.fr/en/products-e-shop

Technical features

Seals: FKM Passages: 8 and 12 mm Working temperature: between -15 °C and +200 °C Working pressure: between 0 bar and 15 bar Materials: steel - AISI 420 (balls); stainless steel - AISI 302 (spring); brass - nickel-plated (body)
