Quick-connect safety couplings ISO 6150 B : non-scratch design and anti hose whip design

Quick pneumatic fitting

“ ✔ Anti-hose whip safety : ISO 4414 ✔ Non-scratch design ✔ Two pushes, for a better safety ✔ Ergonomic design for an easy handling ✔ Light weight and non-scratch design : external components in reinforced resin ✔ Space optimized design ✔ Manually adjustable ”

Ask for a quote

Presentation

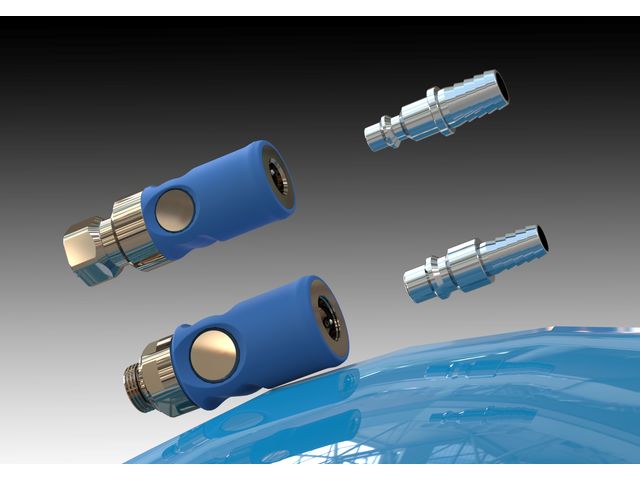

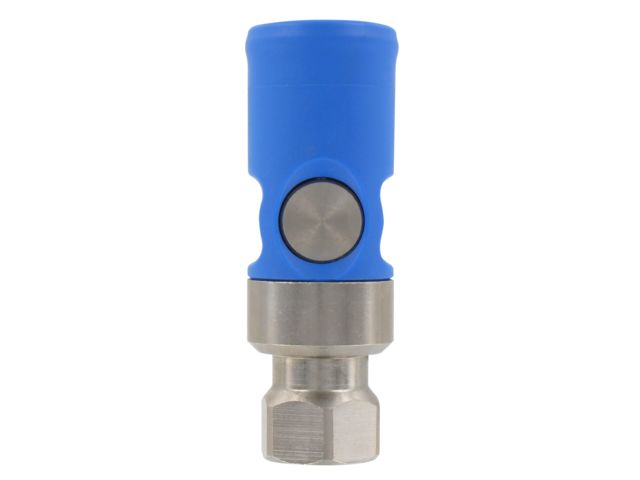

Quick-connect safety couplings ISO 6150 B : non-scratch design and anti hose whip design

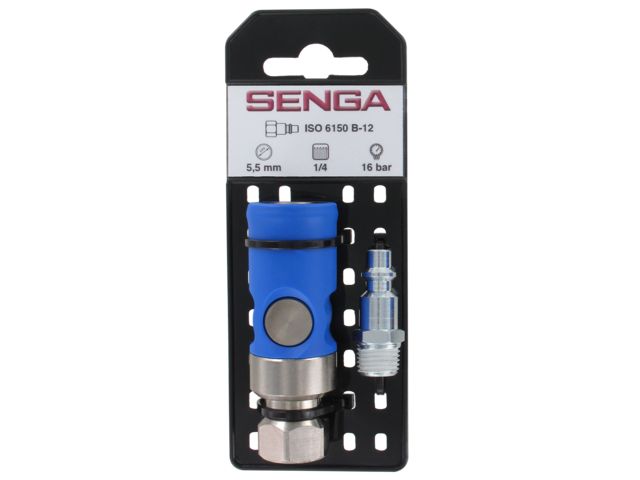

Standard ISO 6150 B-12 and ISO 6150 B-15 - Serie SP20
Orifice : Ø5.5 mm and Ø8 mm
Anti-hose whip safety : ISO 4414
Double push disconnection
Protected push-button
Connection force : 76 N and - N (at 6 bar)
Weight : 90 gr and - gr (G1/4'' male)
Section : 23.75 mm² and 50.26 mm²
Working pressure : 0÷16 bar and 0÷12 bar
Flow rate : 1000 Nl/min and 1650 Nl/min (at 6 bar, Δp = 1 bar)
Working temperature : -20°C÷70°C

A wide range to meet your needs...
Respects the operator, respects the surfaces...
Two pushes, for a better safety
Ergonomic design for an easy handling
Light weight and non-scratch design : external components in reinforced resin
Space optimized design
Manually adjustable

https://www.senga.fr/en/products-e-shop

Technical features

Orifice : Ø5.5 mm and Ø8 mm Anti-hose whip safety : ISO 4414 Double push disconnection Protected push-button Connection force : 76 N and - (at 6 bar) Interchangeable with RECTUS 23/24 - PARKER PB/PBF - 1/4''- CEJN 310 - RECTUS 30 - PARKER PB/PBF - 3/8'' Section : 23.75 mm² and 50.26 mm² Working pressure : 0÷16 bar and 0÷12 bar Flow rate : 1000 Nl/min and 1650 Nl/min (at 6 bar, Δp = 1 bar) Working temperature : -20°C÷70°C

Download the complete technical features
