ISO 6150 B Safety Quick Connect Couplings for Compressed Air on Packaging Plates

Quick pneumatic fitting

“ ✔ Anti-scratch design ✔ Anti-whiplash safety: ISO 4414 STANDARD ✔ Double pulse ✔ Hand adjustable ✔ Lightweight ✔ Ergonomic design ✔ Handy ”

Ask for a quote

Presentation

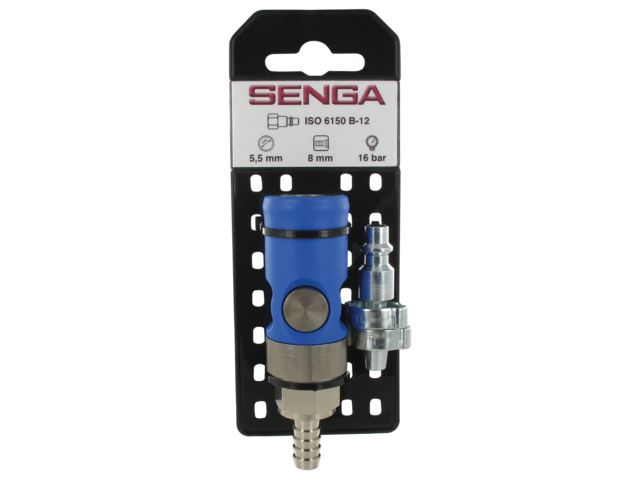

A great marketing asset, the packaging inserts are designed to highlight the safety quick couplings (plastic series SP20) and nipples on the shelves of your shop, while ensuring efficient storage.

With a 32.5mm centre-to-centre spacing, these inserts will fit perfectly on your shop's shelf pins.

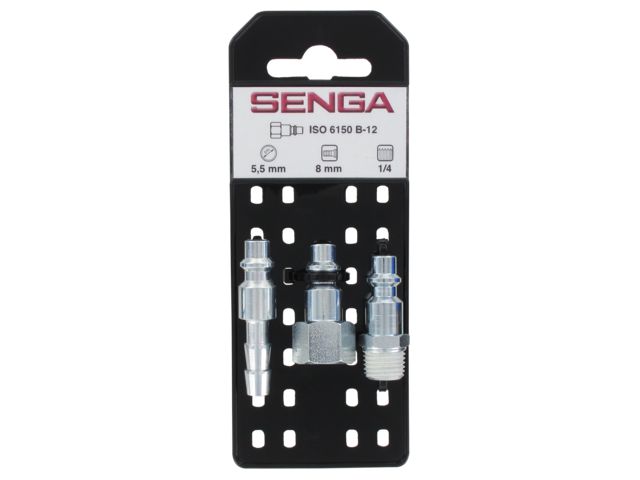

Our range includes 8 different types of inserts, including male, female and splined couplers and nipples.
The label contains the most important product information: nipple profile, cross-sectional area, thread sizes and maximum working pressure.
Finally, on the back of the label there is a place to stick a second label (e.g. your own barcode).

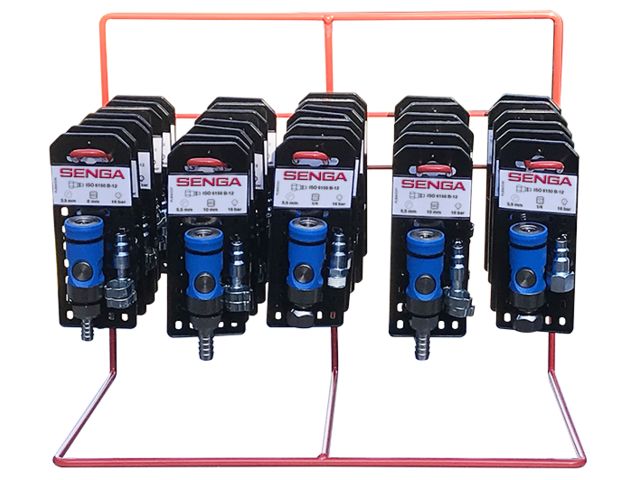

An empty display case is offered for every order of 40 mixed plates.
We invite you to discover our brand new range in the catalogue dedicated to packaging inserts for safety fittings.

https://www.senga.fr/en/products-e-shop

Technical features

Fluid: compressed air Operating pressure: between 0 bar and 16 bar Working temperature: between -20 °C and +80 °C Double trigger disconnection - Push button not protruding Coupling force: 76 N (at 6 bar) Anti-whipping safety: STANDARD ISO 4414 Passages: 5. 5 mm Interchangeable with RECTUS 23/24 - PARKER PB/PBF - 1/4' - CEJN 310 - PREVOST ISI 06 Flow rate: 1 000 Nl/min (at 6 bar, Δp = 1 bar) Nipple profile: ISO 6150 B-12
