Safety pneumatic quick coupling | PREVOS1

Quick pneumatic fitting

“ ✓ Quick and effortless coupling // Safety // Maximum efficiency // Compact and lightweight // Resistant to abrasion, vibrations, corrosion, impacts and crushing // Anti-static / scratch resistant construction // Three-year guarantee ”

Ask for a quote

Presentation

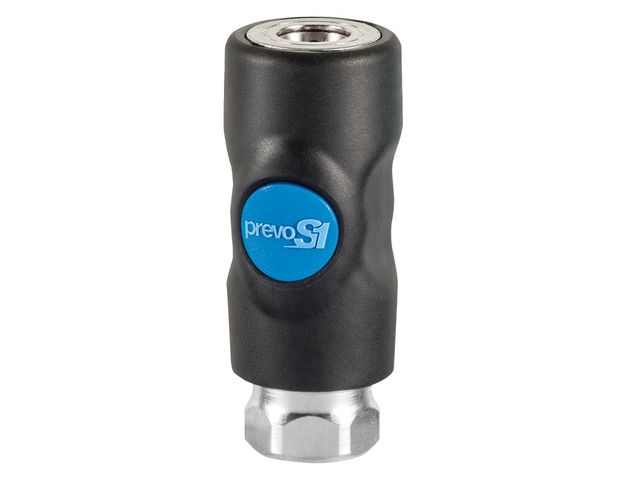

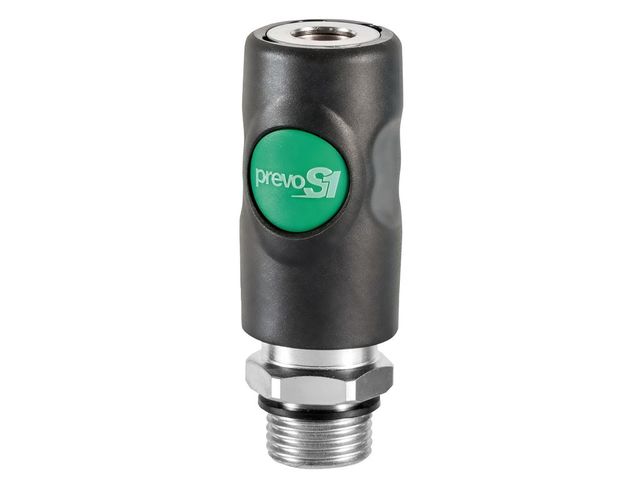

PrevoS1 quick safety couplings are available for most of the profiles used around the world such as ISO 6150 B (Blue button), ISO 6150 C (Black button), European 7.2-7.4 (Green button), ARO 210 (Yellow button), British (Orange Button) and Truflate (Red Button).
The push-button system ensure that the air is depressurised and that the tool is disconnected in a single movement. Their swivel body makes assembly quick and easy.

Coupling compliant with ISO 4414 and DIN EN 983 standards
to guarantee user protection.
ATEX 94/9/CE classification : safe to use in most industries (gaseous environment, cereal transfers, paint cabin...) - they do not have any potential ignition source of their own.

Pressure and temperatures: Service pressure range > 2 to 12 bar (not suitable for vacuum)

Ultra-lightweight and compact
Optimal flow rate
Perfect leaktightness
Silicon free
Non-scratch body
Anti-static body: Prevo S1 couplings ensure electrical conductivity.

Technical features

Operating pressure : 2 to 12 bar ID Passage : 6 - 7,4 - 8 - 11 Construction : Composite or Metal body Technology : One Push-button system Temperature : -15°C to +70°C Flow rate at 6 bar ( Δp 0.6bar): 833 to 2028 l/min according to the profiles and diametres ATEX 94/9/CE ISO 4414 and DIN EN 983 Guaranteed 3 years

Download the complete technical features
