Highly flexible buscable with PUR outer sheath, for use in different bussystems
For bus systems like e.g. Modbus, SUCOnet, Modulink, VariNet. Flame retardant, UL- approval, Core indet. code DIN 47100. Temperature range from -40°C bis +80°C
LD is a LAPP abbreviation for long distance
Benefits
-
Suitable for multiple Bus systems based on RS485 / RS422
-
PUR outer sheath, tear and notch-resistant, resistant to mineral oils and abrasion when used in power chains
-
Under consideration of the temperature range also suitable for outdoor use
Application range
-
For highly flexible applications (power chains, moving machine parts)
-
Bus cables for bus systems such as e.g. Modbus, SUCOnet P, Modulink P, VariNet-P)
Product features
-
The stated bit rates result in the following cable lengths (maximum) of one bus segment:
-
9.6-93.75 kbit/s = 1200m
-
187.5 kbit/s = max. 1,000 m
-
500 kbit/s = max. 400 m
-
UV-resistant (but colour may change after some time)
Norm references / Approvals
-
UNITRONIC® BUS LD FD P A:
UL versions with certification:
UL/CSA type CMX acc. to UL 444
and CSA C22.2 no. 214-02
-
Flame-retardant according IEC 60332-1-2

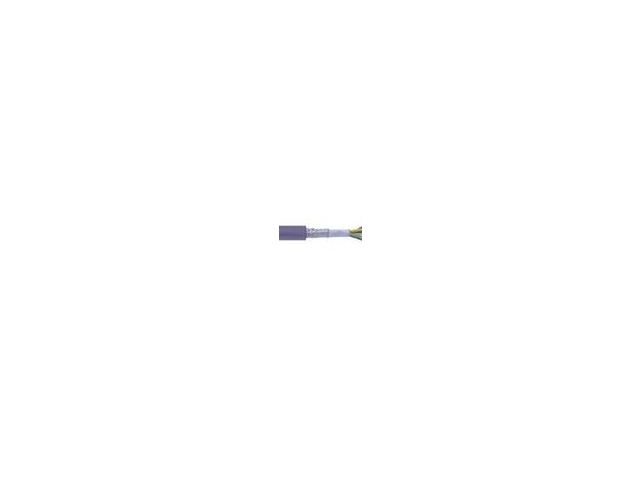

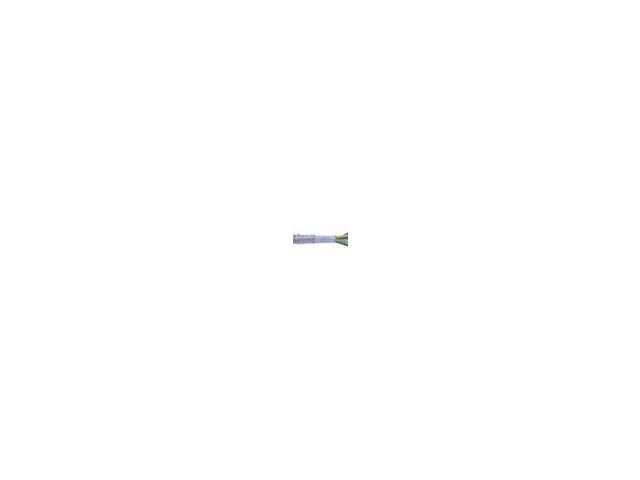

Product Make-up
-
Extra-fine wire strand made of bare copper
-
Colour code DIN 47100
-
Core insulation: PE
-
Overall screening of braided tinned-copper strands
-

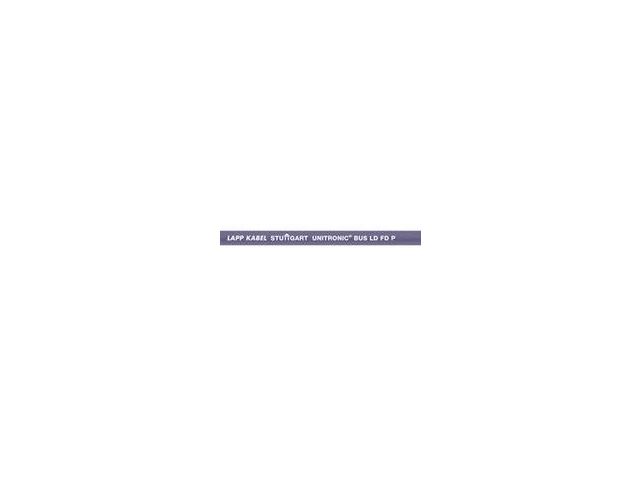

Outer sheath: PUR, violet (RAL 4001)
