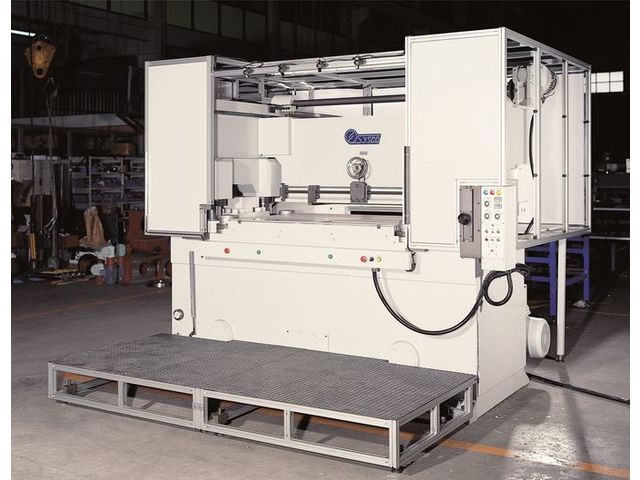

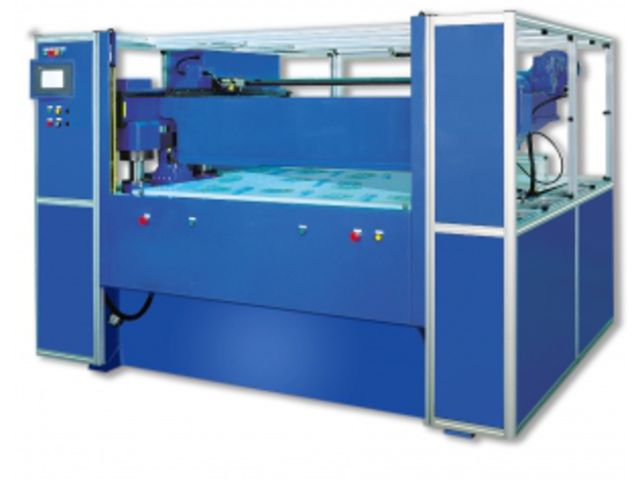

Hydraulic receding head die cutting press : SYSCO - RBC

Hydraulic receding head die cutting press : SYSCO - RBC - DOREY

Hydraulic receding head die cutting press : SYSCO - RBC - Cutting press

Hydraulic receding head die cutting press : SYSCO - RBC - produit présenté par DOREY

Hydraulic receding head die cutting press : SYSCO - RBC

Cutting press

Ask for a quote

Presentation

Hydraulic Receding Head Die Cutting Press Cutting area from 600 x 900 mm to 1200 x 2500 mm.

Receding head travel controlled by the servomotor, balancing system and 4 columns provide high rigidity and precision of the assembly for a parallel cutting and a power spread equality over the entire surface of the table.

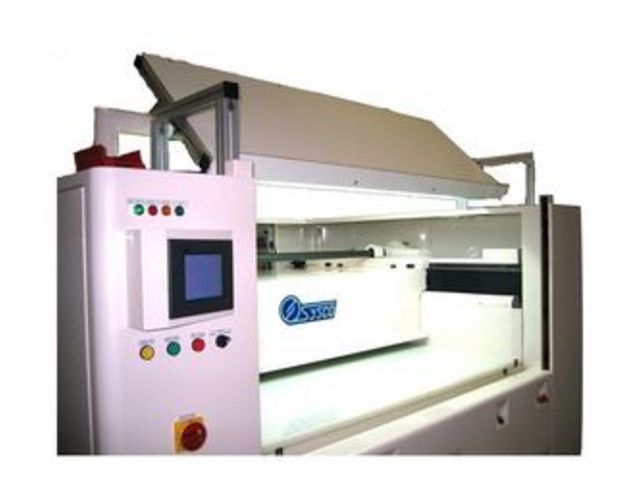

LCD touch screen control.

Optionally the machine can receive mechanical stops for kiss cutting on steel plate or through cut with material coming from rolls or sheets in semi-automatic or automatic mode.

Technical features

Capacity : 4000 cuts per 8 hours Net weight : 2900 kg / 3400 kg / 4800 kg / 6600 kg

Usage scope

Mecanic - Aerospace - Automotive - Naval - Railway Foam - Joint - Rubber - Abrasive Cardboard packaging - Envelope - Puzzle Industrial Textile - Leather - EPI
