ROEMHELD

Clamping Bars WZ 2.2095

Positioners and Tightening components

Sanitary conveyor rated for low pressure wash down with soap and water cleaners. General Specifications Loads up to 60 lbs Belt speeds up to 264 ft/min Belt widths: 1.75″ to 18″ Conveyor lengths: 2′...

Ask for a quote Receive Documentation Contact the supplier

Application

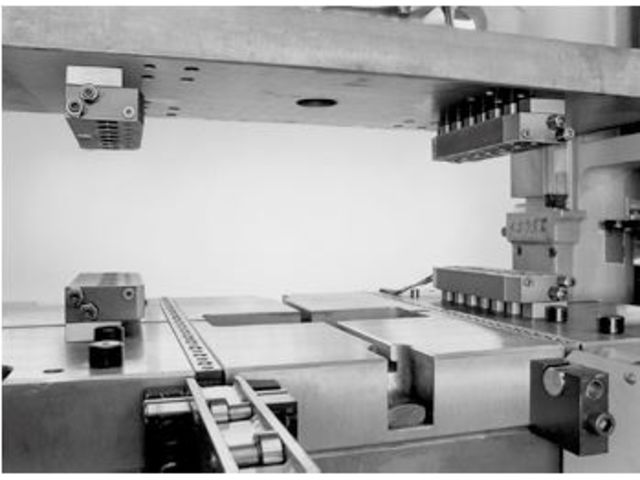

The clamping bars are used permanently installed on press beds and rams, on machines and plants for clamping and locking.

Description

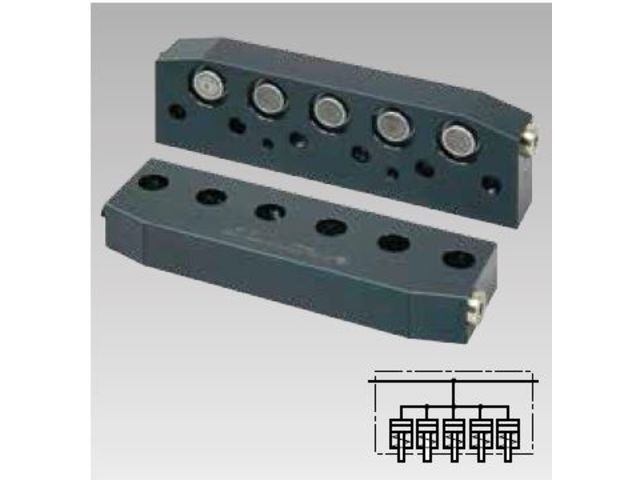

The clamping bar is directly screwed on the press bed or ram using a spacer bar.
Clamping is carried out on the die clamping edge by applying hydraulic pressure to the 5 pistons which are arranged side by side with a pressure medium and mechanical unclamping by a spring return. Hydraulic oil is supplied through G 1/4 ports provided on both sides. Flat design with die inlet chamfer. Clamping force up to 48 kN uniformly distributed over 5 pistons. When using several clamping bars in a row, the elements are interconnected by means of hoses or pipes.

Advantages
? Piston stroke 6 or 8 mm
? Flat and compact design
? Fully resilient stroke limitation
? Easy installation
? Easy to retrofit

Download the complete technical features
