Presentation

POLY1500

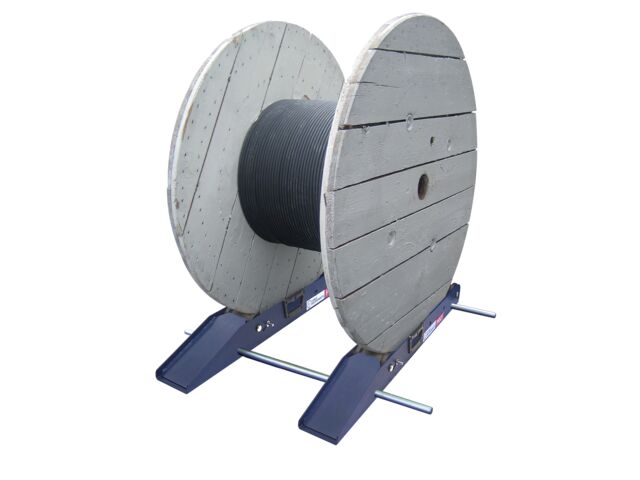

Adjustable: a single unwinder for all cable drums - Easy-to-dismantle: for ease of transportation to the sites

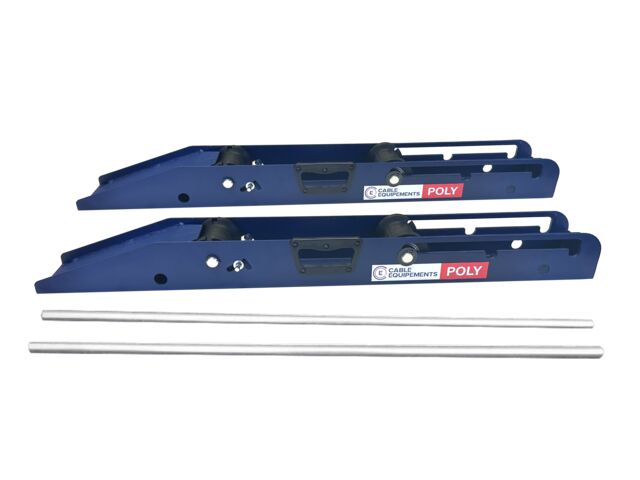

- Can be dismantled into four elements
- Adjustable according to the diameter (3 positions for the rear tensioner)
- Adjustable in width by moving the clamps
- Polyurethane tensioner: good adherence of cable drums, even when strapped
- Blockage system of the front reel in order to remove the cable drum easily
- Length of bars: 1,000 mm

- For drums Ø 500 to 1.400 mm
- Maximum width 950 mm

- Dimensions of each clamp: l 110 x W 860 x H 93 mm
- Useful width of the shoe : 65 mm
- Total weight 20 kg

Code POLY1500

POLY2500

Adjustable: a single unwinder for all cable drums / Easy-to-dismantle: for ease of transportation to the sites

- Can be dismantled into four elements
- Adjustable according to the diameter (3 positions for the rear tensioner)
- Adjustable in width by moving the clamps
- Polyurethane tensioner: good adherence of cable drums, even when strapped
- Blockage system of the front reel in order to remove the cable drum easily
- Length of bars: 1,000 mm

- For drums Ø 500 to 1.650 mm
- Maximum width 950 mm

- Dimensions of each clamp: l 116 x W 990 x H 94 mm
- Useful width of the shoe : 65 mm
- Total weight 26 kg

Code POLY2500
