Vacuum cups

Plastics engineering gripping hands

Ask for a quote

Presentation

The choice of the vacuum cup is defined according to your applications. The vacuum technique is used to pick up the objects.
Several parameters are to be taken into account for the choice of the vacuum cup such as: shape, material, surface condition, aspect, mass, temperature or orientation of the grip.

There are several types of vacuum cups:

Flat vacuum cup without stop: for flat, rigid, smooth or slightly curved objects for vertical handling.
Flat vaccum cup with stops: for thin, flexible, deformable objects for horizontal manipulations.

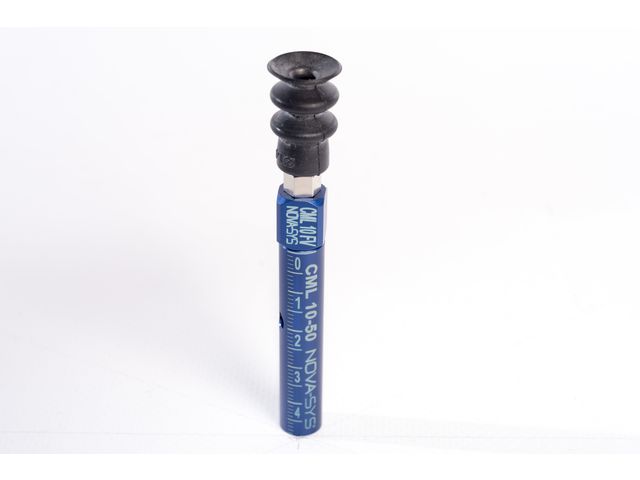

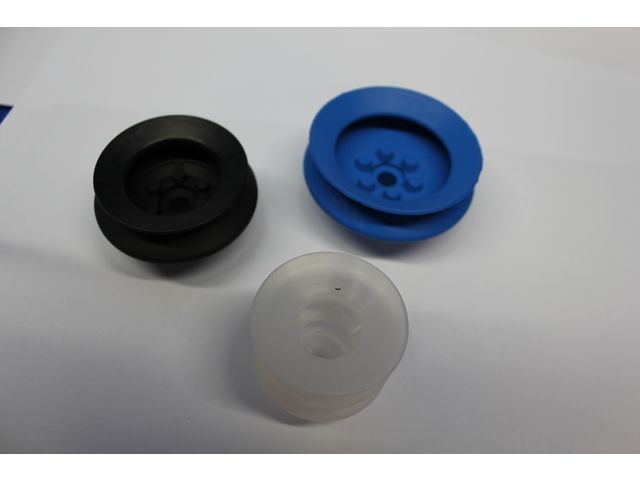

Bellows-type vacuum cup: for spherical, cylindrical, ovoid objects. Load pick-up on different levels, lifting, ball-and-socket joints. Available in 4 materials: nitrite (0°C - 80°C), silicone (-40°C - 220°C), siton (0°C - 160°C), natural rubber (-20°C - 70°C). The more bellows, the greater their flexibility.
Vacuum cup reinforced with annular foam: for extreme grips

For more informations, do not hesitate to read our catalog.
