Stäubli is entering a new performance class with its TS2 SCARA series. The completely redesigned 4-axis machine with proprietary JCS drive technology facilitates ultra-short cycle times and high repeatability. It also has a revolutionary hygienic design which opens up new possibilities for use in sensitive environments. It is piloted by the generic CS9 controller that also controls TX2 6-axis robots.

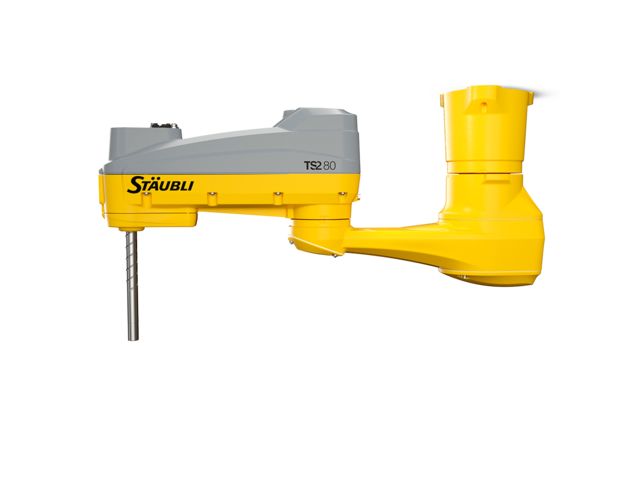

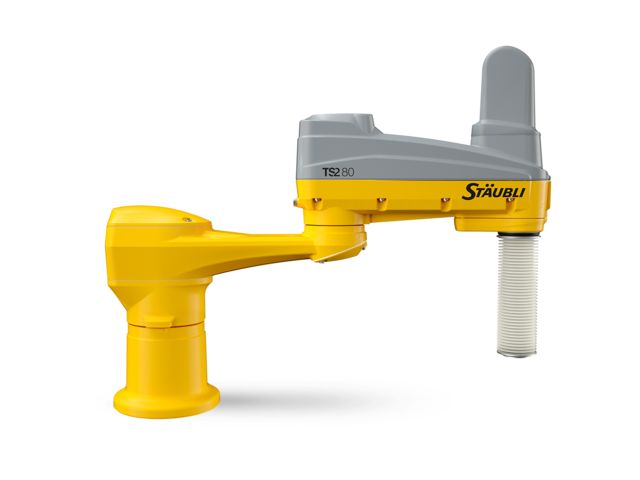

The fast and compact TS2-80 robot has special features, such as a maximum payload of 8.4 kg with a 800 mm reach.
DESIGN, PERFORMANCE AND CONNECTIVITY REDEFINED
Smart design
-
Hygienic encapsulated 4-axis arm enabled by hollow shaft drives, no external cables
-
Compatible with all environments
-
Protection and additional installation options available
-
IP65 for the entire arm with optional ball screw cover and bellows
Integration flexibility, modular and scalable
-
Unique cylindrical envelope and small footprint
-

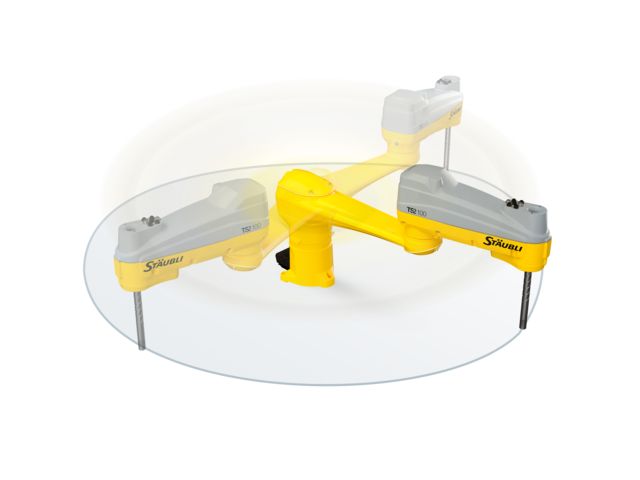

Axis 1 working range: ± 180°
-
Floor and ceiling mounting possibility for flexible and scalable integration
High performance kinematics
-
Over 125 years of experience in fast moving technology
-
Light and rigid structure
-
Patented JCS smart gearbox specially designed for compact robots
-
Compatible with NSF H1 food oil with no loss in performance
All you need to run your factory !
