NEODITECH

Electrical arm Scara Parts 50 kg AGRO : SC0405

SCARA robot

Ask for a quote Receive Documentation Contact the supplier

Technical characteristics :

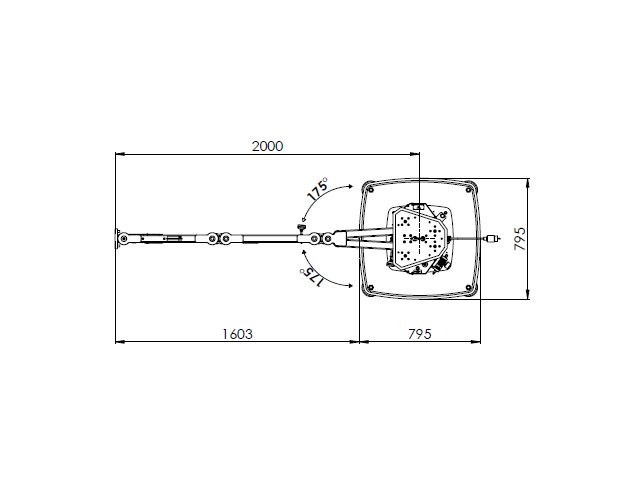

• Manipulating radius : 2 m
• Load capacity at 2m : 50kg (including gripping attachment)

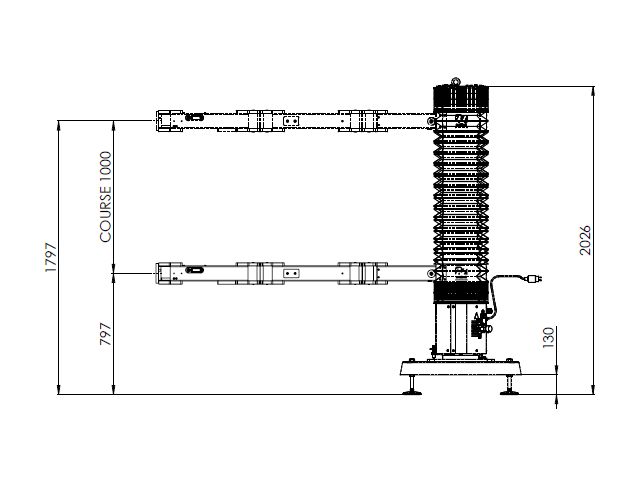

• Vertical stroke : 1m
• Torque limiter and stop function
• Orientation ring : 350°
• Smooth horizontal manual axes
• Zero gravity arm

Operation

Vertical electric axis –220V single-phase supply

Intuitive inbuilt sensitive handle for progressive speed control

Recommended for

Very accurate positioning (< 1 mm). Approach and withdrawal phases requiring flexibility and speed.

Examples of applications

Loading parts onto machining centres, locating parts in machines, assembly and inspection operations, etc.
