TS2-100 ESD 4-axis robotic arm

TS2-100 ESD 4-axis robotic arm - STÄUBLI ROBOTICS

TS2-100 ESD 4-axis robotic arm - SCARA robot

TS2-100 ESD 4-axis robotic arm - produit présenté par STÄUBLI ROBOTICS

TS2-100 ESD 4-axis robotic arm

SCARA robot

Ask for a quote

Presentation

The TS2-100 ESD (ElectroStatic Discharge version) is designed designed to prevent electrostatic discharges in order to safely handle electronic components. It can operate in sensitive electronic environment for various applications such as PCB assembly, vision inspection, product testing and packaging of electronic consumer goods.

Minimize part failures and rework costs : ensure that all accessible elements are dissipative to eliminate ESD risks in production. Specific ESD compliant paint.

Safely handle sensitive devices : each arm link connected to ground, transversal conductivity

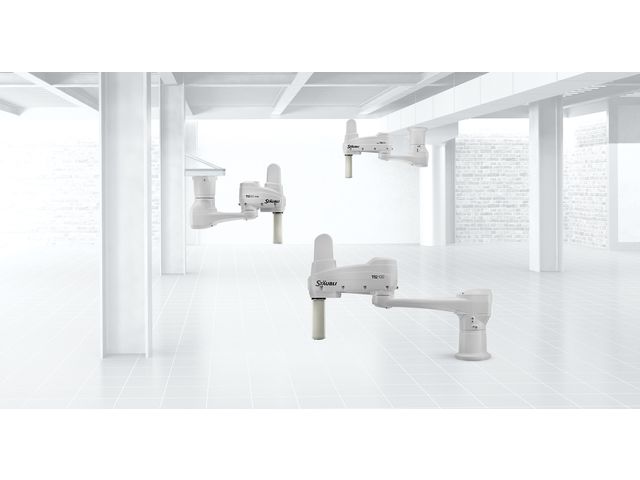

Flexible integration on the production line : for greater flexibility, Stäubli robots have multiple mounting configurations (floor, wall or ceiling) to make it easier to integrate the robot into the production chain.

Optimum cleanliness, arm motion freedom and production reliability thanks to its cables and pipes routed through the arm removing obstacles from the work area (enclosed structure).

Technical features

Maximum load : 8.4kg Nominal load : 2.4kg Reach : 1000mm Degrees of freedom : 6 Repeatability - ISO 9283 : ±0.02 mm Protection class : IP54 Mounting options : Floor/wall Stäubli CS9 series controller Certifications : UL, CE, KCS
