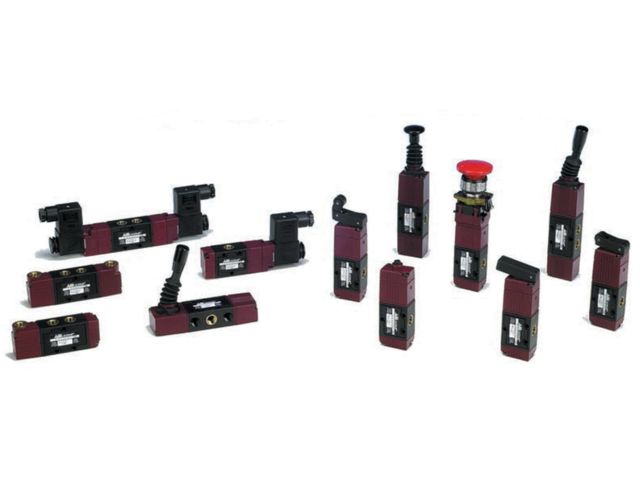

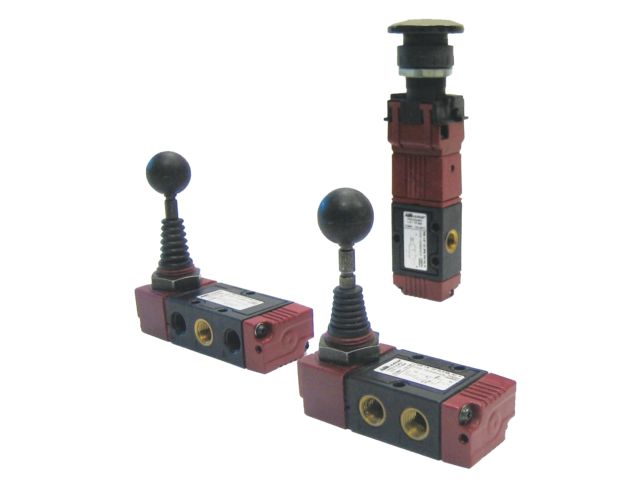

Technopolymer pneumatic spool valves - Series 120

Pneumatic valves

Wheels of the series GG are made of a high quality grey cast iron centre / Wheels of the series GS are made of a high quality steel centre with a vulcanised / pressed on black Wicke-ELASTIC® rubber...

“ ✔ High product standardisation ”

Ask for a quote

Presentation

SENGA's Series 120 technopolymer spool valves are suitable for a wide range of industrial applications, thanks to their reliability and versatility.

Operating with filtered compressed air (with/without lubrication), these pneumatic valves are resistant to a working temperature of -5 to +50°C. They provide a flow rate of 490 Nl/min.

The high degree of standardisation of the product makes it possible to obtain a very complete range in various versions: manually, mechanically, pneumatically and electro-pneumatically operated valves.

Installation is very simple thanks to the holes in the valve body.

https://www.senga.fr/en/products-e-shop

Technical features

Construction: 3/2 - 5/2 - 5/3, spool type Fluid: filtered compressed air (with/without lubrication) Installation: simple thanks to the holes in the valve body Connection type: G1/8 Nominal diameter: 5 mm Working temperature: min = -5°C max = 50°C Flow rate (P=6bar - Δp=1bar): 490 Nl/min Material: technopolymer
