Aircomp pneumatic pilot valves - 110 Series

Pneumatic valves

“ ✔ Offer maximum possibilities of use ”

Ask for a quote

Presentation

The 110 series Aircomp pneumatic pilot is recommended for applications using filtered compressed air (with or without lubrication), in a working temperature range of -5 to +50°C

Designed to offer maximum versatility, this pneumatic pilot unit also meets the various requirements of the market.

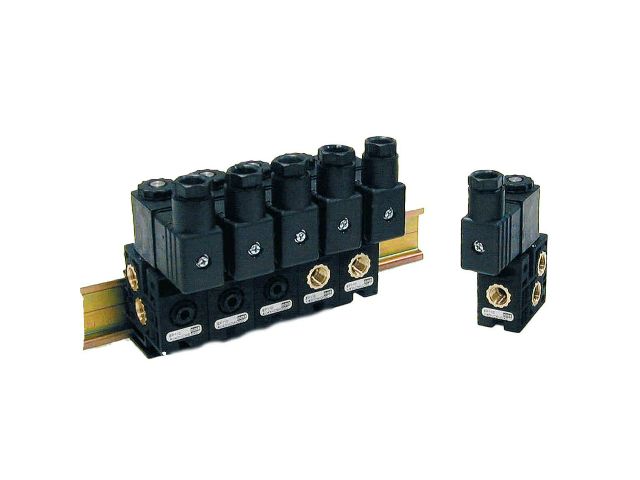

These modular units operate with batteries composed of 3/2-way normally closed (NC) or normally open (NO) solenoids with the advantage of concentrating all functions in a single valve unit.

The channelled exhaust of the solenoid valve is designed to avoid the stresses associated with the introduction of impurities and condensates into the environment, which are also harmful to the electrical components, which are sometimes unavoidably mounted next to the valves.

The batteries can be fixed through the pre-drilled holes on the body of each solenoid valve or by means of a suitable kit that allows fixing to a 35 mm Omega DIN EN50022 bar.

https://www.senga.fr/en/products-e-shop

Technical features

Working temperature: between -5 °C and +50 °C Fluid: filtered compressed air (with or without lubrication) Type of manual override: bistable Starting power: DC = 3 W AC = 7,5 VA Durchflussmenge:(P=6bar - Δp=1bar) 50 Nl/min Voltage tolerance: +/- 10 Flow rate:(P=6bar - Δp=1bar) 50 Nl/min Protection class: IP 65 Materials: stainless steel, brass, PBT, NBR Max. operating pressure: 10 bar
