Presentation

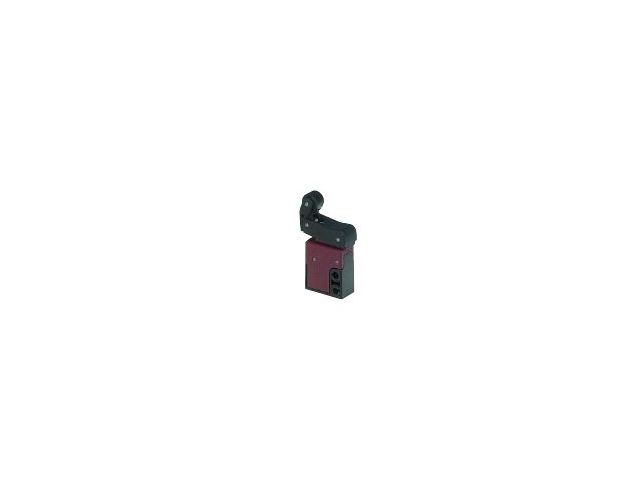

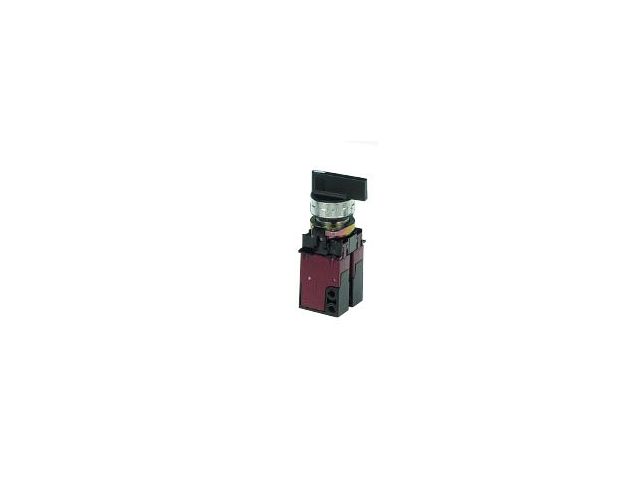

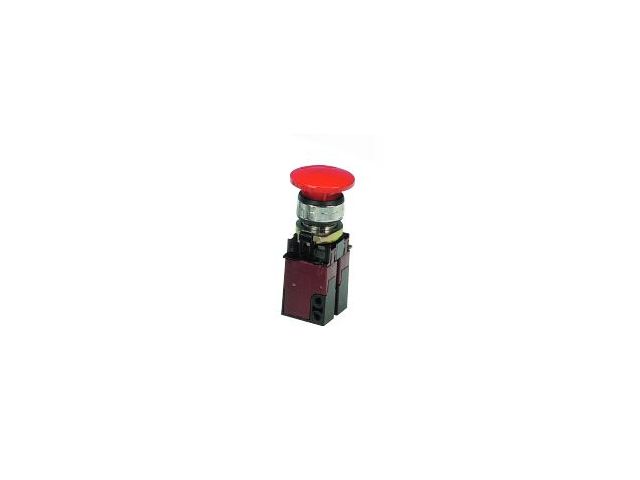

The Series 100 pneumatic mini spool valves marketed by SENGA are designed to meet the requirements of various applications.

Made from technopolymer, these mini valves are characterised by their small size, speed and signal accuracy.

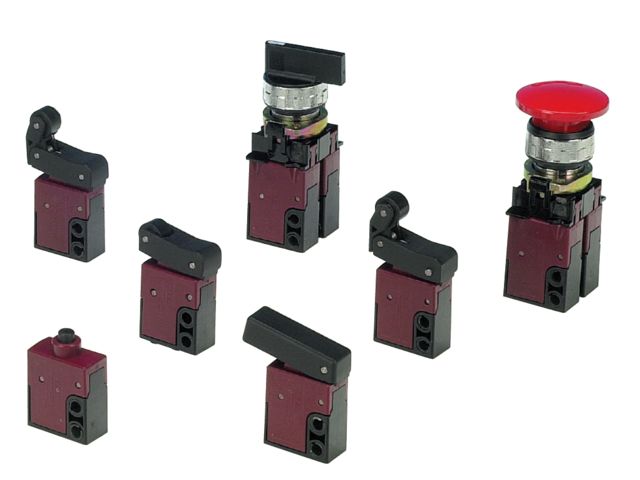

Available in a wide range of actuators, the Series 100 mini spool valves are available in M5 and 4 mm diameter push-in fittings.

Operating at pressures from 2 to 10 bar, the Series 100 mini shut-off valves are temperature resistant from -5°C to +50°C. They guarantee a flow rate of 75 Nl/min.

https://www.senga.fr/en/products-e-shop

Technical features

Construction: 2/2 - 3/2, NC & NO, with shutter Fluid: filtered compressed air (with or without lubrication) Installation: all positions through ports in the valve body Connection type: M5 or Ø4 mm self-locking Operating temperature: between -5 °C and +50 °C Operating pressure: between 2 bar and 10 bar Flow rate: (P = 6bar - Δp = 1bar) 75 Nl/min stainless steel - SPRING; brass - OT 58 (INSERTS); - PUSH: POM - SEAL: NBR - NOZZLE: POM - O-RING: NBR - BODY: POM
