Smart card milling and chip implanting automatic machine : SYSCO - IMA-3000H

Plastic machining centre

Ask for a quote

Presentation

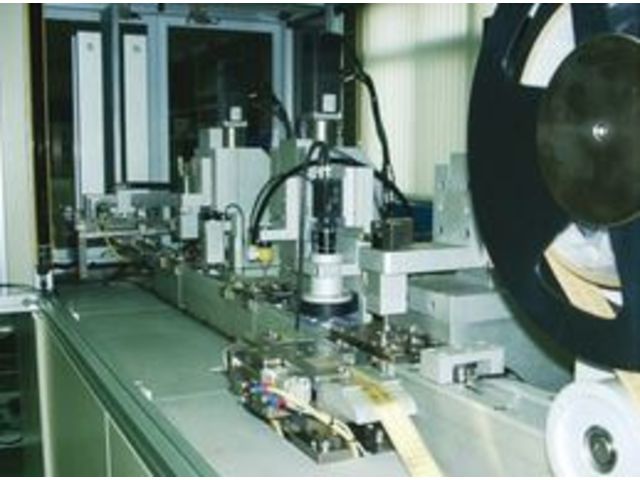

The machine IMA-3000H is a fully automatic milling and chip implanting system for chip or smart card such as telephone cards, bank credit cards, GSM cards, ID health care cards, etc...

Extraction of individual cards from two removable loading magazines
The timing belt transporting system moves the cards from one workstation to another in a synchronizes manner
Card thicjness measuring station ensuring only one card is fed

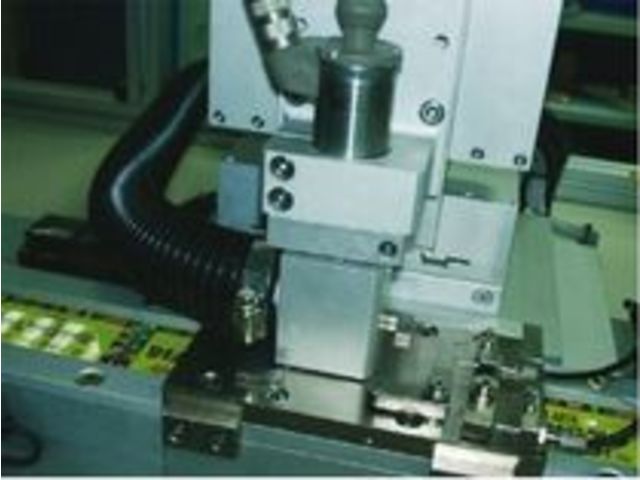

CNC cavity high speed milling head for up to 60,000 RPM and dust extraction
Hot melt tape spoller, puncher, laminating and peel off system to laminate with chip module tape
Chip module punching station and pick & places system for chip module implanting in the cavities
Bonding on chip into the card cavity
Cooling press qtation
Data input device
Sorting of cards into good and reject magazines
PC based control for easy operation
Production capacity of up to 3,000 cards per hour
Smooth, low-impact operation reduces the noise level of hot melt adhesive
Modular design
Integrated hot melt lamination system
Very stable ans consistent production process
Both flexible and reliable
