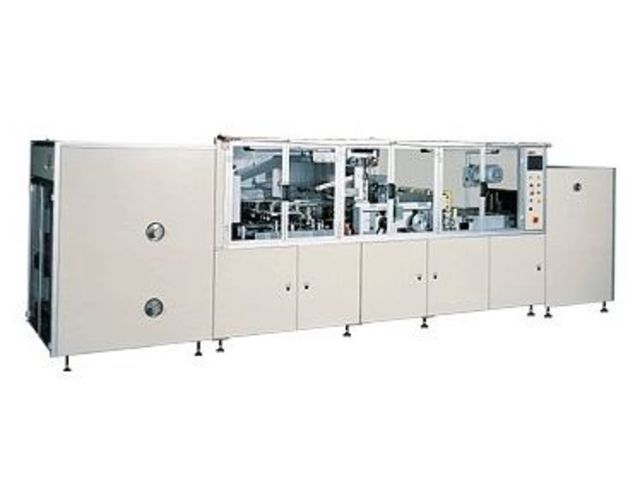

Automatic cutting, stacking and sorting system for playing cards : SYSCO - CAR-5P

Plastic machining centre

Ask for a quote Receive Documentation Contact the supplier

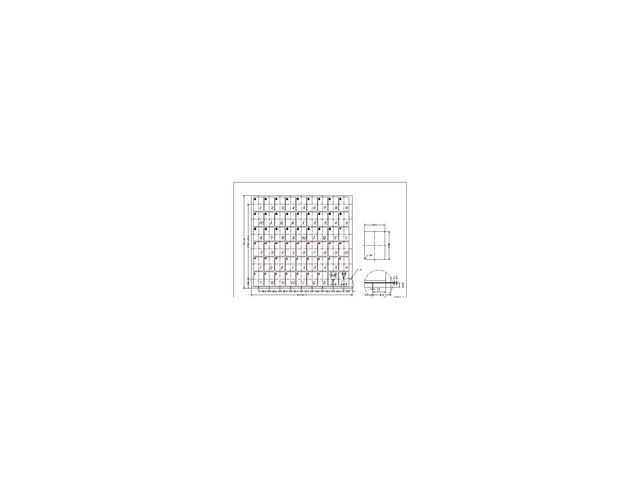

  • Example of a standard sheet SYSCO: width 578 x length 624 mm
  • Card format paper: 88 mm x 63 mm, 4 mm radius
  • Layout: 6 cavities by 9 rows
  • Hourly capacity: 500 x 54 = 27,000 cards
  • Automatic Feeder approximately 1000 sheets per suckers
  • Anti-static bar and double sheet detection
  • Gripping and transferring the sheets entering the air bag assembly is driven by a servomotor and ball screw to ensure accuracy in the positioning + - 0.1 mm
  • Mark detection for automatic alignment of the sheet by XY two high precision optical lasers + - 0.1 mm
  • Detecting printed marks on the Y axis by one laser precision optical alignment and automatic + - 0.1 mm positioned at the inlet of the tool
  • Tool punch die cavities horizontal or vertical - SYSCO manufacturing
  • Hydraulic quick and silent 5 Tons

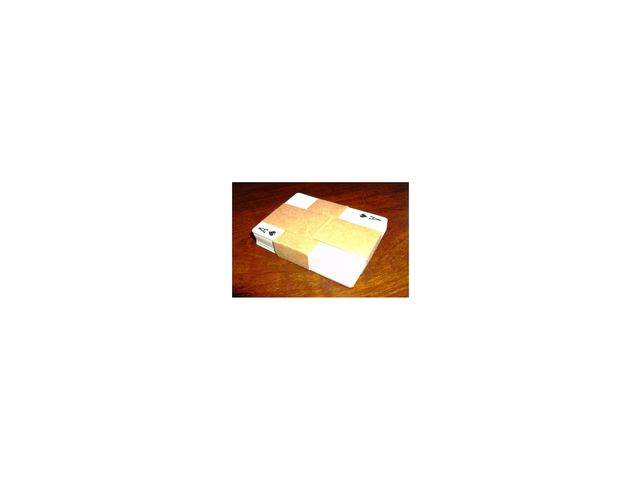

  • Stacking cards interchangeable with 6 stores
  • Transferring sheets in output controlled by servomotor and ball screw
  • Evacuation from falling rollers
  • Touch screen control: friendly, multi-lingual (French and / or English), setting and trimming various counts
  • All fully protected by guards and security doors with CE hydraulic silent

Cutting force : 5 tons Material size : 577Wx579L mm Format : 6x9 rows Capacity : 500 cards/h

Plastic card Playing card Card game
