Presentation

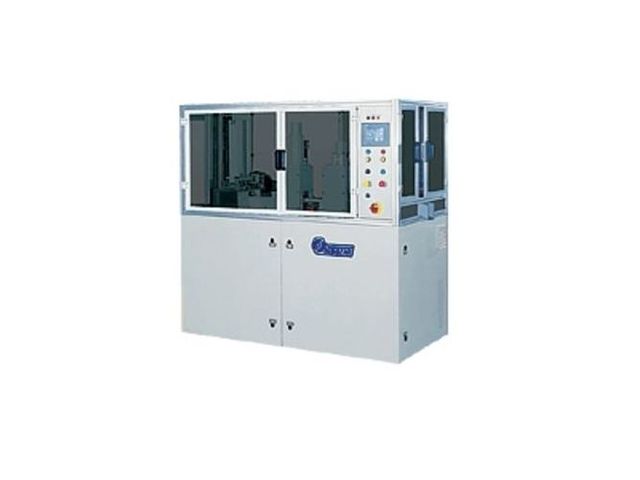

The machine is fully automatic punching and stacking system for GSM cards (Global System for Mobile Communications). It is designed to punch the Subscriber Identity Module (SIM) and scribe a break-out line according to the GSM 11.11 standard.

Benefits

Extraction of Individual cards from two removable loading magazines.
The timing belt transporting system moves the cards from one workstation to another in a synchronized manner.
SIM punching operation is driven by hydraulic system.
Scribing of break-out lines with pneumatic-driven tool knife edge.
Removal of waste material into an external container.
Automatic stacking of the finished cards in two output removable magazines.
Complete CE safety guards.
The touch screen monitor makes the machine easy to operate and self-diagnostic trouble shooting makes the machine user friendly.
Very stable and consistent production system
Both flexible and reliable.

Technical features

Material : PVC, ABS, other material upon request Card dimension : ISO format ID-1 SIM module : ISO format ID-000 Production capacity : 3000 cards per hour Magazine capacity : 500 cards Net weight : 2000 kg
